QFH-5180R

Satellite Antenna by STT-SystemTechnik GmbH
1 more product
Download Datasheet Request Information

Note : Your request will be directed to STT-SystemTechnik GmbH.

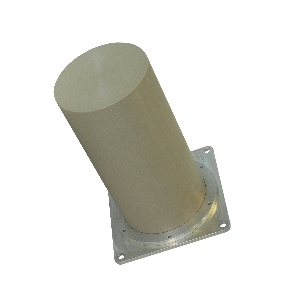

QFH-5180R Image

The QFH-5180R from STT-SystemTechnik GmbH is a Satellite Antenna with Frequency Range 5.15 to 5.216 GHz, Power Consumption 19.95 W, Mass 450 g, Impedance 50 Ohms, Operating Temperature -60 to 120 Degree C. More details for QFH-5180R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QFH-5180R
  • Manufacturer
    STT-SystemTechnik GmbH
  • Description
    C-Band Satellite Antenna designed for use on board of small satellites

General Parameters

  • Space Heritage
    Yes
  • Satellite Type
    SmallSat
  • Antenna Type
    Quadrifilar Antenna
  • Frequency Band
    C Band
  • Frequency Range
    5.15 to 5.216 GHz
  • Polarization
    RHCP
  • Power Consumption
    19.95 W
  • VSWR
    1.50:1
  • Mass
    450 g
  • Impedance
    50 Ohms
  • Connector
    SMA, SMA - Female
  • Operating Temperature
    -60 to 120 Degree C
  • Application
    Low earth orbit (LEO) missions
  • Dimension
    168 mm (Length with pedestal), 128 mm w/o pedestal), 85 x 85 mm (Reflector / Pedestal), 64 mm (Radome diameter)
