2.8m Flyaway Antenna for Multi-Band Transmissions

SKU: FA-240/70

Satellite Antenna by Ultra
14 more products
Download Datasheet Request Information

Note : Your request will be directed to Ultra.

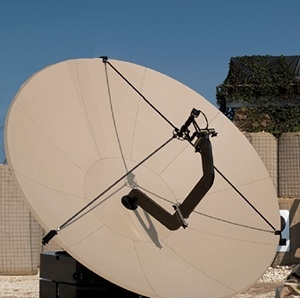

FA-240/70 Image

The FA-240/70 from Ultra is a Satellite Antenna with Frequency Range 7.9 to 8.4 GHz (Tx), 7.25 to 7.75 GHz (Rx), Tx Frequency 7.9 to 8.4 GHz, Rx Frequency 7.25 to 7.75 GHz, Antenna Gain 29 dBi, Power Consumption 1.5 kW (Tx). More details for FA-240/70 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FA-240/70
  • Manufacturer
    Ultra
  • Description
    2.8m Flyaway Antenna for Multi-Band Transmissions

General Parameters

  • Space Heritage
    Yes
  • Antenna Type
    Reflector Antenna
  • Frequency Band
    C Band, X Band
  • Frequency Range
    7.9 to 8.4 GHz (Tx), 7.25 to 7.75 GHz (Rx)
  • Tx Frequency
    7.9 to 8.4 GHz
  • Rx Frequency
    7.25 to 7.75 GHz
  • Antenna Gain
    29 dBi
  • Polarization
    Linear Orthogonal, RHCP, LHCP
  • Power Consumption
    1.5 kW (Tx)
  • Directionality
    Directional
  • Beamwidth
    1.5 Degree
  • Reflective Isolation
    90 dB
  • Horizontal Beamwidth
    180 Degrees
  • VSWR
    1.30:1
  • Mass
    Box 1 : 48 Kg, Box 2 : 49 Kg
  • Voltage
    DC : 24 V, AC : 90 to 264 V
  • Operating Temperature
    -20 to 60 Degree C
  • Storage Temperature
    -40 to 70 Degree C
  • Vertical Beamwidth
    0 to 90 Degrees
  • Dimension
    Box 1 : 0.95 x 0.95 x 0.6 m, Box 2 : 0.95 x 0.95 x 0.6 m
  • Note
    Cross Polarisation : -35 dB
