4Mpx Monochrome Space Camera with 8mm Focal Length Ojective

SKU: 3DCS04M080942

Satellite Camera by 3D Plus
7 more products
Download Datasheet Request Information

Note : Your request will be directed to 3D Plus.

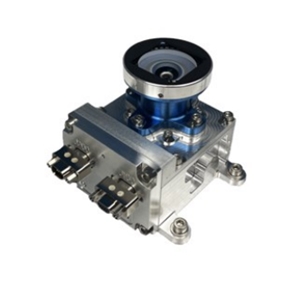

3DCS04M080942 Image

The 3DCS04M080942 from 3D Plus is a Satellite Camera with Camera Pixel 4 MP, Field of View 80 Degrees, Focal Length 8 mm, Frame Rate 1.5 to 6 fps, Input Voltage 4.5 to 9 V. More details for 3DCS04M080942 can be seen below.

Product Specifications

Product Details

  • Part Number
    3DCS04M080942
  • Manufacturer
    3D Plus
  • Description
    4Mpx Monochrome Space Camera with 8mm Focal Length Ojective

General Parameters

  • Camera Pixel
    4 MP
  • Application
    Platform and Payload Monitoring, Navigation & Docking, Rendezvous
  • Downlink
    128 Mbps
  • Field of View
    80 Degrees
  • Focal Length
    8 mm
  • Frame Rate
    1.5 to 6 fps
  • Input Voltage
    4.5 to 9 V
  • Power Consumption
    2 W
  • Interface
    SpaceWire
  • Mass
    376 g
  • Resolution
    2048 (H) x 2048 (V)
  • Pixel Size
    5.5 x 5.5 um
  • Sensor Type
    CMOS
  • Spectral Band
    Monochrome
  • Spectral Range
    400 to 750 nm
  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -55 to 70 Degree C
