Satellite Camera for LEO Applications

SKU: Owl 640 M

Satellite Camera by Raptor Photonics

Note : Your request will be directed to Raptor Photonics.

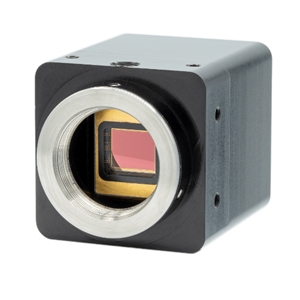

Owl 640 M Image

The Owl 640 M from Raptor Photonics is a Satellite Camera with a resolution of 640 x 512 and a pixel pitch of 15 µm x 15 µm. This camera has an active area of 9.6 x 7.68 mm and a spectral response of 0.6 to 1.7 µm. It enables simultaneous capture of bright and dark portions of a scene and is designed for integration into small OEM platforms. The camera has a frame rate of up to 120 Hz and an exposure time of 10µs to 26.8s. It supports C-mount optical interface and triggers IN and OUT - TTL compatible trigger interface. The camera requires an input voltage of 12 V and features TEC-less Visible SWIR technology that enables an ultra-low power consumption of less than 2.5 W. The camera has a mass of 170 g and measures 62.21 x 42 x 42 mm. It is ideal for CubeSat and low-earth orbit applications.

Product Specifications

Product Details

  • Part Number
    Owl 640 M
  • Manufacturer
    Raptor Photonics
  • Description
    Satellite Camera for LEO Applications

General Parameters

  • Camera Pixel
    0.33 MP
  • Application
    Surveillance - Vision Enhancement, Machine Vision, Beam Profiling, Scientific - Cubesat / LEO Applications, Semiconductor Inspection, Solar Panel Cell Inspection
  • Dynamic Range
    49 to 72 dB
  • Frame Rate
    Up to 120 Hz
  • Input Voltage
    12 V
  • Power Consumption
    2.5 W
  • Interface
    C-mount (Optical Interface)
  • Mass
    0.170 Kg
  • Resolution
    640 (H) x 512 (V)
  • Pixel Size
    15 µm x 15 µm (Pitch)
  • Sensor Type
    InGaAs PIN-Photodiode
  • Shutter Type
    Global shutter
  • Spectral Band
    VIS-SWIR
  • Spectral Range
    0.6 to 1.7 µm
  • Operating Temperature
    -20 to 55 Degree C
  • Storage Temperature
    -30 to 60 Degree C
  • Note
    Dimension : 62.21 x 42 x 42 mm
