C3D

Satellite Camera by XCAM LIMITED

Note : Your request will be directed to XCAM LIMITED.

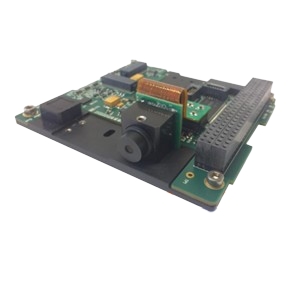

C3D Image

The C3D from XCAM LIMITED is a Satellite Camera with Camera Pixel 1.3 MP, Power Consumption 845 mW (Peak), Mass 85 g, Spatial Resolution 360 m, Spectral Range 400 to 650 nm. More details for C3D can be seen below.

Product Specifications

Product Details

  • Part Number
    C3D
  • Manufacturer
    XCAM LIMITED
  • Description
    1U+ format CubeSat camera with proven space flight heritage

General Parameters

  • Satellite Type
    CubeSat
  • Camera Pixel
    1.3 MP
  • Data Format
    8 Bit
  • Power Consumption
    845 mW (Peak)
  • Interface
    I2C, SPI
  • Mass
    85 g
  • Resolution
    1280 (H) x 1024 (V)
  • Pixel Size
    5.3 µm x 5.3 µm
  • Spatial Resolution
    360 m
  • Sensor Type
    CMOS
  • Spectral Band
    RGB or B&W
  • Spectral Range
    400 to 650 nm
  • Operating Temperature
    -25 to 65 Degree C
  • Storage Temperature
    -35 to 75 Degree C
  • Space Heritage
    Yes
  • Note
    Dimension : 9.5 x 9.1 x 2.7 cm
