40 W Deployable Solar Panel for CubeSat Missions

SKU: DROP-04X

Solar Panels for Satellite by 2NDSpace SRL

Note : Your request will be directed to 2NDSpace SRL.

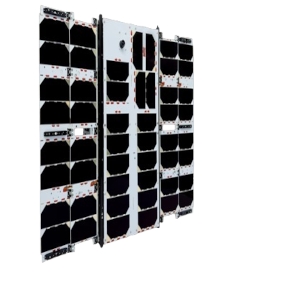

DROP-04X Image

The DROP-04X from 2NDSPACE is a high-efficiency deployable solar panel system engineered for CubeSat and nanosatellite missions requiring robust and scalable power generation solutions. It features two deployable elements equipped with advanced Ultra-Triple-Junction (UTJ) solar cells that offer more than 30% efficiency delivering a total available power output of up to 40 W. It operates with a peak power voltage of 19.94 V and has an open-circuit voltage (Voc) of 20.8 V. The solar panel has a peak current range of 1-1.5 A with minimal protection loss below 0.3 W for optimal power delivery efficiency. It features a zero-residual dipole design and a stabilized thermal dissipation architecture for improved spacecraft stability and thermal control. The solar panel is qualified under NASA GEVS (GSFC-STD-7000A) and ESA ECSS-E-ST-10-03C standards that has undergone rigorous vibration, mechanical shock and thermal vacuum testing. It is an ideal power generation solution for CubeSat missions operating in both LEO and GEO environments.

Product Specifications

Product Details

  • Part Number
    DROP-04X
  • Manufacturer
    2NDSpace SRL
  • Description
    40 W Deployable Solar Panel for CubeSat Missions

General Parameters

  • Satellite Type
    CubeSat
  • Orbit
    LEO, GEO
  • Cell Efficiency
    0.3
  • Power Delivered
    40 W
  • Output Voltage
    20.8 V
  • Space Standard
    GSFC-STD-7000A, ECSS-E-ST-10-03C
