Star Tracker for GEO Orbit & Telecom Applications

SKU: HORUS

Star Tracker by Sodern
3 more products
Download Datasheet Request Information

Note : Your request will be directed to Sodern.

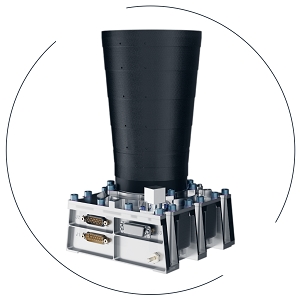

HORUS Image

The Horus from Sodern is a High Performance and Modular Star Tracker Solution which has a temporal noise on XY/Z axes of 3/22 arcseconds and supports a maximum slew rate for acquisition up to 2 deg/s and tracking less than 3 deg/s.It has a baffle sun exclusion angle of 24 deg and has a baffle earth exclusion angle of 18 deg. The star tracker offers a long operating lifetime of 10 years in LEO orbit and 18 years in GEO orbit. It has an ESA Qualified FaintStar CMOS detector with Thermo-Electric Cooler and is designed for GEO missions.

Product Specifications

Product Details

  • Part Number
    HORUS
  • Manufacturer
    Sodern
  • Description
    Star Tracker for GEO Orbit & Telecom Applications

General Parameters

  • Altitude Accuracy
    11.1 arcseconds(Bias (worst case))
  • Mass
    1600 g
  • Slew Rate
    2 to 3 Degree/sec
  • Data Update Rate
    8 to 10 Hz
  • Supply Voltage
    24 to 105 V
  • Power Consumption
    9.5 to 14 W
  • Storage Temperature
    -40 to 70 Degree C
  • Operating Temperature
    -30 to 50 Degree C
  • Dimension
    141 x 141 x 250 mm
  • Application
    Telecom platforms
