0.8 W MicroSat Star Tracker from 3 to 30 arcseconds

SKU: PST4S-H1

Star Tracker by TY-Space Technology Ltd
9 more products
Download Datasheet Request Information

Note : Your request will be directed to TY-Space Technology Ltd.

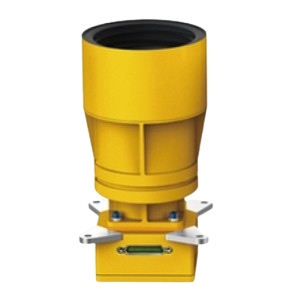

PST4S-H1 Image

The PST4S-H1 from TY-Space Technology Ltd is a Star Tracker with Mass 310 gms, Slew Rate 3 Degree/sec(Dynamic), Data Update Rate 10 Hz, Field of View 15 x 18 Degree, Supply Voltage 5 V. More details for PST4S-H1 can be seen below.

Product Specifications

Product Details

  • Part Number
    PST4S-H1
  • Manufacturer
    TY-Space Technology Ltd
  • Description
    0.8 W MicroSat Star Tracker from 3 to 30 arcseconds

General Parameters

  • Satellite Type
    MicroSat, PicoSat
  • Mass
    310 gms
  • Slew Rate
    3 Degree/sec(Dynamic)
  • Data Update Rate
    10 Hz
  • Field of View
    15 x 18 Degree
  • Supply Voltage
    5 V
  • Power Consumption
    0.8 W
  • Radiation Tolerance
    30 krad
  • Vibration
    13 to 18 GRMS
  • Interface
    RS-422, CAN
  • Space Heritage
    Yes
  • Storage Temperature
    -40 to 40 Degree C
  • Operating Temperature
    -40 to 40 Degree C
  • Dimension
    57 x 57 x 141 mm
