| Featured Space and Satellite Products |
|
|
| 150 V Centertap Low Leakage Schottky Rectifier | |
Space Qualified Diode
from Solid State Devices
|
| The SSR7015DM from Solid State Devices is a space-qualified Schottky center-tap rectifier designed for high-efficiency power conversion in aerospace and high-reliability electronic systems. It supports an average rectified forward current of 35 A and a repetitive peak reverse voltage of 150 V, enabling robust performance in demanding power applications. This diode offers a peak surge current capability of 300 A and features a low forward voltage drop along with minimal reverse leakage current, ensuring efficient power handling and reduced energy losses. |
| |
Download Datasheet
Product Details | |
|
|
|

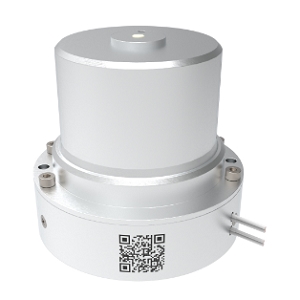

| 35kN Low-Shock Release Actuator | |
Space Actuator
from Space-Lock GmbH
|
| The Release Actuator 35kN from Space-Lock GmbH is an ECSS-compliant low-shock space actuator designed for reliable release and deployment operations in spacecraft and launch vehicle systems. Engineered for high-load retention and controlled separation, it supports mission-critical deployment mechanisms requiring minimal shock generation. This actuator provides a user preload capacity of 35 kN with an ultimate preload capability exceeding 65 kN. This space actuator utilizes redundant initiators for enhanced reliability and supports misalignment tolerance up to ±2° half cone. |
| |
Download Datasheet
Product Details | |
|
|
|

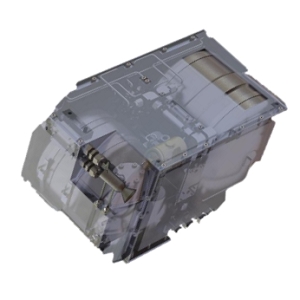

| Bipropellant Spacecraft Thruster for SmallSats | |
Spacecraft Thruster
from Benchmark Space Systems
|
| The Peregrine from Benchmark Space Systems is a Bipropellant Spacecraft Thruster designed to deliver non-toxic and high-thrust propulsion for small satellite missions. Utilizing proprietary on-demand pressurization technology with green propellants based on HTP and NHMF, this propulsion system enhances operational safety while supporting critical spacecraft maneuvers including orbit insertion, collision avoidance and station keeping. It is configurable for satellites ranging from 6U platforms to ESPA-class spacecraft. This spacecraft thruster delivers thrust levels ranging from 250 mN to 22 N. |
| |
Download Datasheet
Product Details | |
|
|
|

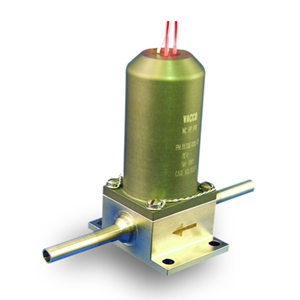

| Normally Closed Positive Isolation Valve | |
Spacecraft Valve
from VACCO Industries
|
| The 13097000 from VACCO Industries is a normally closed positive isolation valve designed for high-pressure spacecraft fluid and propulsion systems. Engineered for reliable isolation and leak-tight performance, it provides robust flow control for demanding aerospace and spaceflight applications. This isolation valve supports inlet and outlet pressures ranging from 0–5000 psig and is qualified to a proof pressure of 7500 psig with a burst pressure of 12,500 psig. It incorporates a hermetic titanium barrier and fully welded construction, providing high structural integrity. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|
| Laser Communication Terminal for Data Relay | |
Satellite Laser Communication Terminal
from Astrolight
|
| The ATLAS-2 from Astrolight is a satellite laser communication terminal designed to provide high-speed optical data transmission for space-to-ground and space-to-space communication links. Operating across a wavelength range of 1536.6-1553.3 nm, it enables secure and high-bandwidth communication for modern satellite missions. This terminal supports transmit data rates of up to 2.5 Gbps, enabling rapid transfer of large volumes of mission data. It features a fine-pointing resolution of up to 15 µrad and a fine-pointing range of 2°, ensuring accurate beam steering. |
| |
Download Datasheet
Product Details | |
|
|
|

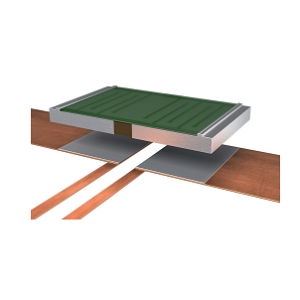

| 3–1000 mOhms Space-Qualified Resistor | |
Space Qualified Resistor
from Isabellenhütte Heusler GmbH & Co. KG
|
| The SMS-PW from Isabellenhütte Heusler GmbH & Co. KG is a space-qualified resistor designed for high-reliability current sensing and power management applications in aerospace systems. Offering a resistance range from 0.003 to 1 ohm, it provides accurate low-resistance performance for precision measurement and control circuits. This resistor supports a power rating of 2 W and provides a temperature coefficient of resistance of up to ±100 ppm/K, ensuring stable electrical characteristics across varying thermal conditions. It offers resistance tolerances of 0.5% and 1%. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.7–4.2 GHz C-Band Low Noise Block | |
Low Noise Block
from Viking Satcom
|
| The VS-LNB-P3742-5 from Viking Satcom is a C-band low noise block designed for reliable satellite signal reception and frequency downconversion in communication systems. Operating with an input frequency range of 3.7–4.2 GHz and converting signals to an output range of 950–1450 MHz, it enables efficient L-band signal processing for satellite networks.This low noise block utilizes a local oscillator frequency of 5.15 GHz with stability of ±5 kHz, ensuring accurate and stable frequency conversion. It delivers a conversion gain of 60 dB and maintains an input/output VSWR of 2.2:1. |
| |
Download Datasheet
Product Details | |
|
|
|

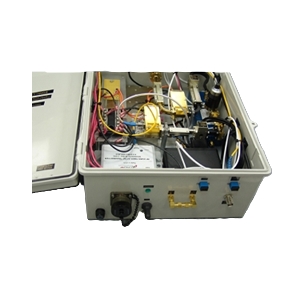

| 70.4-86.4 GHz E-Band Block Downconverter | |
Block Downconverter
from MI-WAVE
|
| The 970E-70.4/86.4/387 from MI-WAVE is an E-band block downconverter designed for high-performance millimeter-wave frequency conversion in advanced communication, sensing, and instrumentation systems. Operating with an input frequency range of 70.4–86.4 GHz and converting signals to an output range of 3.2–19.2 GHz, it enables compatibility with common receivers, demodulators, and signal processing equipment. This BDC delivers a conversion gain of 25 dB with gain flatness of ±3 dB, ensuring stable signal amplification across the operating band. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

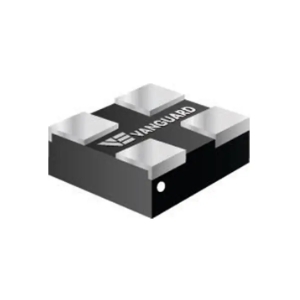

| 0.81 mH Space-Qualified Power Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SIT214 from Vanguard Electronics is a space-qualified power transformer designed for reliable energy transfer and signal conditioning in high-reliability aerospace and satellite power systems. Featuring a primary inductance of 0.81 mH and a current rating of 1.1 A, it supports efficient power conversion and filtering functions within spacecraft electronics. This transformer offers a DC resistance (DCR) range of 0.27 ohms and provides a dielectric withstand voltage of 300 V, ensuring electrical insulation and operational safety in demanding environments. |
| |
Download Datasheet
Product Details | |
|
|
|

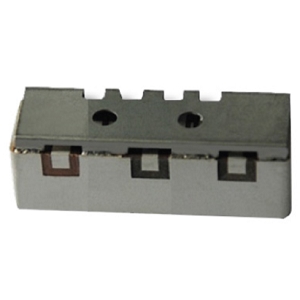

| 698–819 MHz Narrowband Diplexer | |
Space Qualified RF Diplexer
from CTS Corporation
|
| The DPX1025A from CTS Corporation is a Narrowband RF Diplexer engineered for LTE and modern wireless communication infrastructure applications. Designed to support dual operating paths, it enables efficient signal separation and coexistence for Band 10 and Band 25 networks. The Band 10 path covers passbands from 1710–1780 MHz and 2110–2180 MHz, while the Band 25 path operates across 1850–1995 MHz, making it suitable for multi-band RF systems requiring stable and reliable channel management. It utilises an advanced ceramic filtering structure that delivers low insertion loss. |
| |
Download Datasheet
Product Details | |
|
|
|

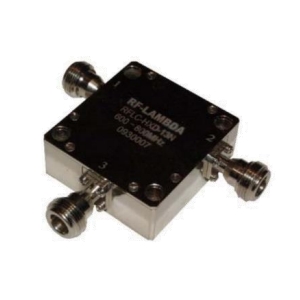

| 400–500 MHz N-Type Coaxial Circulator | |
Space Qualified Circulator
from RF-Lambda
|
| The RFLC101M40M50 from RF-Lambda is a space-qualified coaxial circulator designed for reliable microwave signal routing across the 400–500 MHz frequency range. Engineered for high-performance RF applications, it delivers low insertion loss of approximately 0.5 dB and provides an isolation level of 21 dB, ensuring efficient signal transmission with minimized interference in demanding communication and defense systems.This circulator maintains a low VSWR of 1.25:1 and features a standard 50 ohm characteristic impedance for seamless integration into RF assemblies. |
| |
Download Datasheet
Product Details | |
|
|
|
| Hi-Rel Radiation Tolerant DC-DC Converter | |
DC to DC Converter
from Micross
|
| The M3L2805D from Micross is a radiation-tolerant DC-DC converter designed to provide reliable dual-output power conversion for aerospace and space applications. Engineered for high-reliability environments, it converts a 28 V input into regulated ±5 V outputs while delivering up to 25 W of output power. It supports capacitive loads up to 500 µF and includes adjustable output voltage capability through a single external resistor. The M3L2805D incorporates an internal EMI filter enabling compliance with MIL-STD-461C conducted emissions and susceptibility requirements. |
| |
Download Datasheet
Product Details | |
|
