| Featured Space and Satellite Products |
|
|
| 7.9-8.4 GHz Test Loop Translator | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-8.15-7.4 from GeoSync Microwave is a high-performance test loop translator engineered for satellite communication systems requiring precise frequency translation with minimal amplitude and group delay distortion. Designed to convert input signals from 7.9-8.4 GHz to an output range of 7.175-7.675, it supports accurate loop testing and RF system validation across Ku-band architectures. This translator operates with a 0.725 GHz local oscillator and maintains a 50-ohm impedance for stable system integration. It offers an attenuation adjustment range of 30 dB with an amplitude response of ±0.25 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

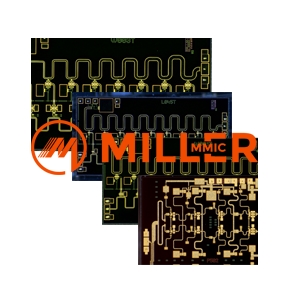

| 3-18 GHz PIN Diode MMIC SP4T Reflective Switch | |
Space Qualified RF Switch
from Miller MMIC
|
| The MMPS016T from Miller MMIC is a space-qualified PIN diode MMIC SP4T reflective switch designed for ultra-wideband RF signal routing across the 3-18 GHz frequency range. Engineered for high-speed switching and broadband performance, it delivers low insertion loss of 0.9-1.2 dB and high isolation value of 45 dB, ensuring efficient signal control in demanding microwave systems. This reflective switch provides an input return loss of -14 dB and an output return loss of -15 dB, supporting effective impedance matching and minimized reflections. It offers a fast switching speed of 20 ns, P1dB value of 25 dBm and an IP3 value of 40 dBm. |
| |
Download Datasheet
Product Details | |
|
|
|

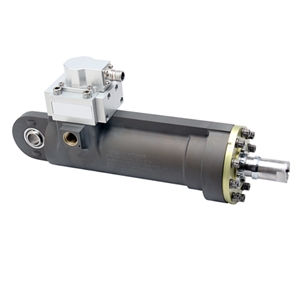

| 1500 psi Thrust Vector Control Actuator | |
Launch Vehicle Actuator
from Jansen Aircraft Systems Controls
|
| The 101424-2 from Jansen Aircraft Systems Controls is a Launch Vehicle Actuator engineered for the thrust vector angle on rocket engines. It is designed for high vibration and shock loads and has excellent frequency response characteristics. This aerospace actuator operates with a maximum hydraulic supply pressure of 1500 psi and delivers exceptional output force, producing up to 7100 lbf in extension and 5000 lbf in retraction. It offers an unloaded frequency response of 6 Hz, enabling precise and responsive flight-control actuation under demanding dynamic conditions. It has a mass of 13.5 lb and overall dimensions of 7.6 x 4.4 x 15.1 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band Low Noise Block Converter | |
Low Noise Block
from Genmix Technology
|
| The GMD182188A01 from Genmix Technology is a Ka-band low noise block converter designed for satellite communication systems requiring high-performance signal reception and frequency down conversion. Operating with an input frequency range of 18.2–18.85 GHz and converting signals to an output frequency range of 950–1600 MHz, it enables efficient integration with L-band satellite receivers and communication equipment. This low noise block converter utilizes a 17.25 GHz local oscillator and delivers conversion gain of up to 62 dB, ensuring strong signal amplification and reliable down conversion performance. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7.1–7.8 GHz Coaxial RF Isolator | |
Space Qualified Isolator
from Exens Solutions
|
| The BH1007 from Exens Solutions is a space-qualified coaxial RF isolator designed to protect sensitive microwave components from reflected power in high-frequency communication systems. Operating across the 7.1–7.8 GHz frequency range, it delivers reliable isolation and signal integrity for commercial space and satellite payload applications.This coaxial isolator provides a minimum isolation of 20 dB while maintaining a low VSWR of 1.25, ensuring efficient impedance matching and reduced signal reflections within RF signal chains. It supports continuous forward and reverse power handling up to 30 W. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| Ka-band Flexible SATCOM Terminal | |
Satellite Terminal
from GRC
|
| The 65m Ka Band Antenna from GRC is a high-performance satellite communication antenna designed for deep-space communication, high-throughput satellite connectivity and advanced radio astronomy applications. It features a 65-centimeter diameter precision parabolic reflector engineered to deliver exceptional antenna gain, pointing accuracy and signal stability, enabling reliable Ka-band communication links for demanding ground segment operations.This antenna delivers an EIRP of 51.4 dBW for Ka-band transmission and provides a G/T performance of 16.4 dB/K, ensuring high receive sensitivity and reliable signal acquisition. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-44 GHz GaAs MMIC Double Balanced Mixer | |
Space Qualified RF Mixer
from Marki Microwave
|
| The MM1-1044LCH-2 from Marki Microwave is a GaAs MMIC double-balanced mixer designed for both up-conversion and down-conversion applications across a wide RF/LO frequency range of 10 GHz to 44 GHz. It supports an IF frequency range from DC to 14 GHz and delivers excellent linearity with an IP3 performance ranging from 12.5 dBm to 13.7 dBm. With a low conversion loss of 9.5 dB to 14.5 dB, this mixer ensures efficient and reliable signal conversion for high-frequency communication and microwave systems.This high-performance mixer operates with an LO drive level from 7 dBm to 15 dBm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Tolerant Hermetically Sealed Optocoupler | |
Space Qualified Optocoupler
from ISOBAUD
|
| The IBS2249 from ISOBAUD is a Dual-Channel Radiation-tolerant Hermetic Surface-Mount Optocoupler specifically engineered and qualified for NewSpace, near-Earth orbit and low-Earth orbit (LEO) missions. Featuring a robust 1500 V DC isolation voltage, this space-grade optocoupler ensures dependable performance in harsh aerospace and high-reliability electronic environments. It supports an emitter power dissipation of 70 mW and a detector power dissipation of 300 mW. Housed in a compact hermetic 8-pin LCC package, the IBS2249 combines rugged construction, high reliability and radiation-tolerant operation for mission-critical signal isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Qualified Frequency Multiplier | |
Space Qualified Frequency Multiplier
from Microwave Dynamics
|
| The A2X4044-2 from Microwave Dynamics is a Space Qualified Frequency Multiplier designed for reliable millimeter-wave frequency conversion in commercial and space applications. It accepts an input frequency range of 20 to 22 Hz and delivers an output frequency range of 40 to 44 GHz, making it suitable for Ka-band systems and high-frequency satellite communication payloads. This frequency multiplier operates with an input power level of +7 dBm and provides an output power of +13 dBm, enabling signal multiplication with stable output performance.The device offers a fundamental isolation of 20 dB. Designed to operate from an 8 V DC supply. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 V Radiation-Hardened DC-DC Converter | |
DC to DC Converter
from Micross
|
| The M3GB7012S from Micross is a Radiation-Hardened DC-DC Converter engineered for high-reliability space and defense applications. This converter efficiently converts a 60-100 V DC input to a regulated 12 V DC single output and delivers up to 40 W of output power. This single-output power supply features output ripple of up to 60 mV p-p, ensuring stable and efficient power conversion for mission-critical systems. This space-grade power converter incorporates magnetically coupled feedback regulation. Housed in a hermetic aluminium/silicon-carbide package measuring approximately 3 × 2 × 0.475 inches and weighing less than 100 g. |
| |
Download Datasheet
Product Details | |
|
