| Featured Space and Satellite Products |
|
|
| 12 V Radiation-Hardened DC-DC Converter | |
DC to DC Converter
from Micross
|
| The M3GB7012S from Micross is a Radiation-Hardened DC-DC Converter engineered for high-reliability space and defense applications. This converter efficiently converts a 60-100 V DC input to a regulated 12 V DC single output and delivers up to 40 W of output power. This single-output power supply features output ripple of up to 60 mV p-p and achieves efficiency levels of up to 82%, ensuring stable and efficient power conversion for mission-critical systems. This space-grade power converter incorporates magnetically coupled feedback regulation and fixed-frequency switching at approximately 500 kHz. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7.9-8.4 GHz Test Loop Translator | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-8.15-7.4 from GeoSync Microwave is a high-performance test loop translator engineered for satellite communication systems requiring precise frequency translation with minimal amplitude and group delay distortion. Designed to convert input signals from 7.9-8.4 GHz to an output range of 7.175-7.675, it supports accurate loop testing and RF system validation across Ku-band architectures. This translator operates with a 0.725 GHz local oscillator and maintains a 50-ohm impedance for stable system integration.It offers an attenuation adjustment range of 30 dB with an amplitude response of ±0.25 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-band Flexible SATCOM Terminal | |
Satellite Terminal
from GRC
|
| The 65m Ka Band Antenna from GRC is a high-performance satellite communication antenna designed for deep-space communication, high-throughput satellite connectivity and advanced radio astronomy applications. It features a 65-centimeter diameter precision parabolic reflector engineered to deliver exceptional antenna gain, pointing accuracy and signal stability, enabling reliable Ka-band communication links for ground segment operations. It delivers an EIRP of 51.4 dBW for Ka-band transmission and provides a G/T performance of 16.4 dB/K, ensuring high receive sensitivity and reliable signal acquisition. |
| |
Download Datasheet
Product Details | |
|
|
|
| Multi-Band Block Upconverter for SATCOM | |
Block Upconverter
from GeoSync Microwave
|
| The U2KuL from GeoSync Microwave is a Multi-Band Block Upconverter designed for satellite communication and ground station frequency conversion applications. Supporting efficient L-band to Ku-band translation, it converts input frequencies from 0.95 to 1.45 GHz into output frequencies from 12.75 to 13.25 GHz using an 11.8 GHz local oscillator in Band 1. In Band 2, it converts input frequencies from 0.95 to 2.1 GHz into output frequencies from 13.75 to 14.8 GHz using a 12.8 GHz local oscillator. This upconverter delivers a conversion gain of 30 dB with an output P1dB of 13 dBm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Raltron Electronics | | | |
|
|

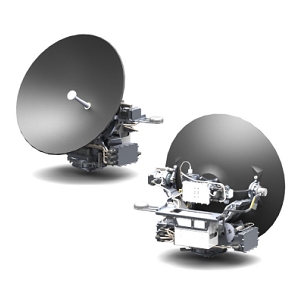

| Ka-Band Satellite Terminal for SATCOM | |
Satellite Terminal
from Gilat Satellite Networks
|
| The BRP60Ka from Gilat Satellite Networks is a Satellite Terminal designed for airborne SATCOM applications requiring high-throughput beyond-line-of-sight (BLoS) communications on tactical unmanned aerial systems (UAS). Featuring a 60 cm carbon-fiber parabolic antenna operating in the Ka-band, it supports transmit frequencies from 27.5 to 31 GHz and receive frequencies from 17.7 to 21.2 GHz with circular polarization. It delivers an EIRP of up to 57 dBW and provides a G/T of 15.8 dB/K at mid-band, enabling reliable high-capacity satellite connectivity for ISR, command & control and sensor data transmission missions. |
| |
Download Datasheet
Product Details | |
|
|
|

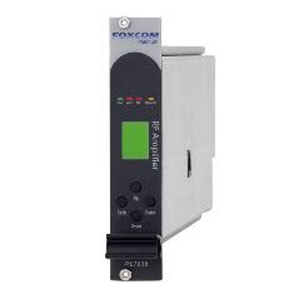

| 10–3000 MHz SATCOM Amplifier System | |
SATCOM Amplifier System
from Foxcom
|
| The PL7620 from Foxcom is a SATCOM Amplifier System designed to provide adjustable RF signal amplification across the 10–3000 MHz frequency range for satellite communication and IFL applications. Delivering up to 28 dB of adjustable gain, it supports both pre-amplifier and post-amplifier configurations, enabling reliable signal conditioning and long-distance RF transmission in satellite communication networks. The amplifier also provides an output 1 dB compression point of +12 dBm and integrates embedded input and output RF power meters along with either a local LCD interface or an SNMP management card. |
| |
Download Datasheet
Product Details | |
|
|
|
| Broadband Satellite Router for Communication | |
Satellite Modem
from Comtech
|
| The CEL-100-STG from Comtech is a Broadband Satellite Router designed for large-scale VSAT deployments across high-throughput satellite and multi-orbit communication networks. Delivering aggregate throughput of up to 260 Mbps and IP router productivity of 150,000 packets per second, it enables efficient broadband connectivity for GEO, MEO and LEO satellite systems. The router supports high-capacity networking applications while maintaining reliable performance across diverse satellite communication environments. It incorporates two independent 500 Msps DVB-S2/S2X demodulators with separate IF inputs. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Qualified Star Tracker for Microsatellites | |
Star Tracker
from Solar MEMS
|
| The MicroST from SOLAR MEMS is a space-qualified star tracker designed to provide high-precision attitude determination for microsatellite missions. Featuring a modular architecture that supports both standalone and multi-camera configurations, it delivers accurate spacecraft orientation measurements for a wide range of orbital applications. This star tracker provides attitude accuracy ranging from 6 to 48 arcseconds (3σ) and maintains a bias of 0.1°, enabling reliable attitude knowledge for precision pointing and navigation tasks. It supports angular rates of up to 3°/s and achieves star acquisition in as little as 2 seconds. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Raltron Electronics | | Satellite TCXOs & VCXOs made in Miami, FL | | Raltron TCXOs provide compact, low power crystal references with excellent temperature stability for precise satellite communication and GNSS timing. Raltron VCXOs maintain tight frequency and phase alignment in satellite and GNSS systems. Click Here | | | |
|
|

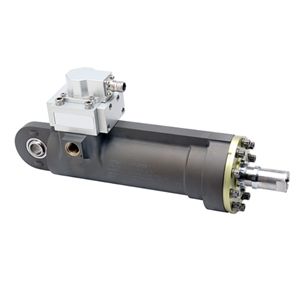

| 3000 psi Thrust Vector Control Actuator | |
Launch Vehicle Actuator
from Jansen Aircraft Systems Controls
|
| The 101622-2 from Jansen Aircraft Systems Controls is a Launch Vehicle Actuator engineered for the thrust vector angle on rocket engines. It is designed for high vibration and shock loads and has excellent frequency response characteristics. This aerospace actuator operates with a maximum hydraulic supply pressure of 3000 psi and delivers exceptional output force, producing up to 13250 lbf in extension and 10750 lbf in retraction. It offers an unloaded frequency response of 8 Hz, enabling precise and responsive flight-control actuation under demanding dynamic conditions. It features a long stroke length of 6.1 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| CubeSat Deployer for LEO Satellite Missions | |
Satellite Deployer
from UARX Space
|
| The RAMI from UARX Space is a Space-Qualified CubeSat Deployer engineered for reliable deployment of CubeSats in both Low Earth Orbit (LEO) and interplanetary missions. Designed to exceed CubeSat Design Specification requirements, it incorporates resettable non-pyrotechnic deployment actuators with triple redundancy, ensuring dependable release performance for mission-critical spacecraft. The deployer also features redundant actuation lines and offers an optional interface for battery charging and communication with integrated satellites before deployment, both on the ground and during flight. |
| |
Download Datasheet
Product Details | |
|
