| Featured Space and Satellite Products |
|
|

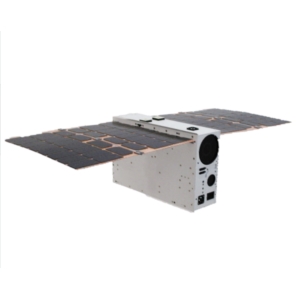

| 6U CubeSat Platform | |
Satellite Bus & Platform
from Argotec
|
| The Hawke Platform 6U from Argotec is a Satellite Platform with a payload capacity of up to 3 Kg. It has a payload peak power of 40 W and a solar array peak power of up to 80W. The platform has telemetry transmitter data rates of up to 100 Mbps and command radio receiver data rates of up to 30 Mbps (LEO). It supports RS422, LVDS, SpaceWire, SPI, I2C, and CAN data bus interfaces and has a bus data storage of 64 GB. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2m Ku-Band Fly-Away Antenna | |
SATCOM Antenna
from Norsat
|
| The WFA120KU-EU from Norsat is a SATCOM Antenna with an Rx frequency range of 10.70 - 12.75 GHz and a Tx frequency of 13.75-14.50 GHz. This antenna has a Tx gain of 42.8 dBi and an Rx gain of 41.5 dBi. The antenna has an azimuth range of +/- 200 degrees and an elevation range of 10-90 degrees. The antenna offers rugged and reliable satellite links for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|

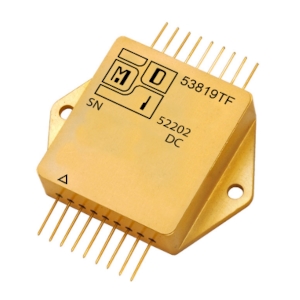

| Radiation-Hardened Hybrid Solid-State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53819 from Modular Devices is a Space Qualified Solid-State Relay with a maximum contact voltage rating of 300 V and a contact current rating of 5 A. This relay requires a bias input voltage of 4.7-5.3 V DC and a bias current of 30-50 mA. It uses wide band gap semiconductors for low resistance and features magnetically coupled commands for fast response. The relay has a mass of 32 g and comes in a rugged hermetic package. |
| |
Download Datasheet
Product Details | |
|
|
|

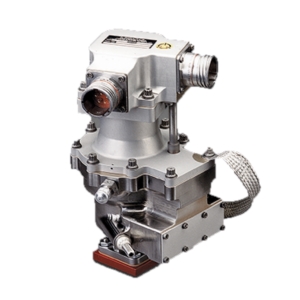

| Launch Vehicle Electromechanical Rotary Actuator | |
Launch Vehicle Actuator
from Moog
|
| The Propellant Valve (0.2 hp) from Moog is a Launch Vehicle Actuator with a horsepower of 0.2 hp and a stall torque of 300 in/lbf. This actuator has a powerpoint of 250 in/lbf (at 300 deg/sec). It has a mass of 5.1 lbs with a stroke of 70 degrees. This launch vehicle actuator is used to provide thrust vector control for launch vehicles and has been used in several launch vehicles such as Antares, Delta IV, Centaur, and Vega. |
| |
Download Datasheet
Product Details | |
|
|
|

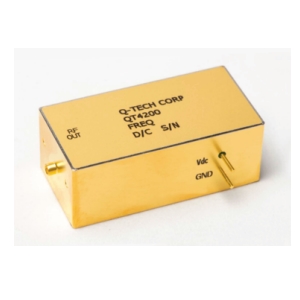

| 1-125 MHz Space-Qualified Oven Controlled Crystal Oscillator | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT4200 from Q-Tech Corporation is a Space Qualified Oscillator with a frequency range of 1-125 MHz and a spurious value of -90 dBc. It requires a supply voltage of 5-15 V and temperature stability of ±10 ppb, ±20 ppb, ±100 ppb and ±200 ppb. This oven-controlled crystal oscillator is MIL-PRF-55310 space-qualified and is designed to meet requirements for space-grade applications, control and measurement, and signal processing. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band 2W VSAT Transceiver | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 2W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 13.75-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. This transceiver has a Tx gain of 64 dB and an Rx gain of 75-100 dB. It has a 1-dB compression point of 33 dBm and a noise figure of 1-2 dB. It has a mass of 12 kg and measures 549 x 229 x 178 mm. It supports RS-232 and RS-485 interfaces. |
| |
Download Datasheet
Product Details | |
|
|
|

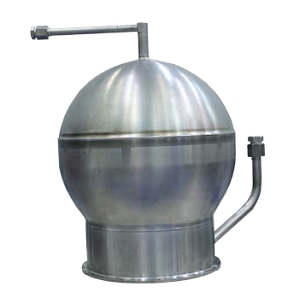

| 17.5 L Spacecraft Propellant Tank | |
Spacecraft & Satellite Propellant Tank
from RAFAEL
|
| The PEPT-330 from RAFAEL is a Spacecraft and Satellite Propellant Tank with a nominal internal volume of 17.5 L and a propellant volume of 15.4 L. This propellant tank has an operating pressure of 29 bar and a burst pressure of 43.5 bar. It has a proof pressure of 36.25 bar and a tank dry mass of 3.1 Kg. This satellite propellant tank has a service life of up to 15 years and has been used in the EXOMARS 2016 satellite launch. |
| |
Download Datasheet
Product Details | |
|
|
|

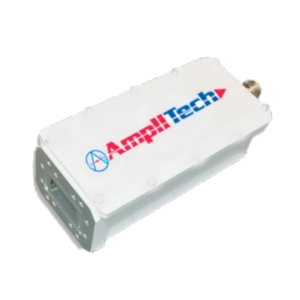

| X-Band Low Noise Block Downconverter | |
SATCOM Low Noise Block
from AmpliTech
|
| The APT5-LNB-XBAND from AmpliTech is a SATCOM Low Noise Block with an input frequency range of 7.75 - 8.50 GHz. This LNB has a stable LO frequency of 6.95 GHz and an output frequency range of 800 - 1550 MHz. It has a gain of 56 dB and a minimum output P1dB of 15 dBm. The LNB has a low noise temperature of 40k. It is ideal for small seats, LEO, MEO, GEO, and portable or fixed X-band teleport applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM | | |
|
|

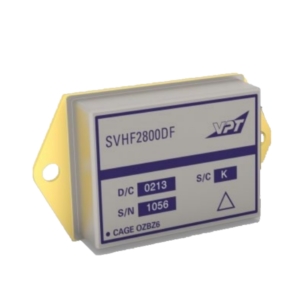

| Space Qualified Hybrid DC-DC Converter | |
DC to DC Converter
from VPT
|
| The SVHF2805D from VPT is a DC-DC Converter with an input voltage range of 15-80 V and an output voltage range of 4.75-5.25 V. This converter has an output power of 15 W and an efficiency of up to 78%. The converter has a radiation tolerance TID of up to 60 krad (Si) and a SEE performance of 44 MeV/mg/cm2. It is suited for use in low earth orbit (LEO), MEO, geostationary orbit (GEO), deep space, and launch vehicle programs. |
| |
Download Datasheet
Product Details | |
|
|
|

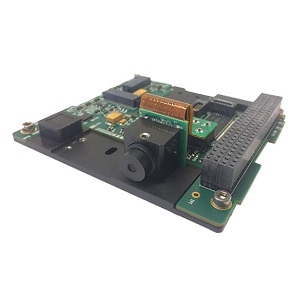

| 1U CubeSat Camera System | |
Satellite Camera
from XCAM LIMITED
|
| The C3D from XCAM LIMITED is a Satellite Camera with a spatial resolution of 360 m GSD. This camera system uses a 1.3 MP CMOS image sensor and a standard COTS lens of 9.6 mm F/3.0. It is TRL 9 qualified with proven flight heritage having flown on both the UK Space Agency’s UKube-1 and AlSat Nano missions. The C3D from XCAM is ideal for earth observation and spacecraft deployment monitoring applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Satellite Link Emulator for Synchronous Bi-Directional Links | |
Satellite Link Emulator
from IZT
|
| The IZT C6000 from IZT is a Satellite Link Emulator that has an input and output frequency range of 450-1250 MHz. It has a delay range of 10 µs to 800 ms and can provide bi-directional wideband solutions for up to 600 MHz bandwidth. The satellite link emulator from IZT requires a power supply of 100-240 V AC and is the ideal solution for the simulation of complete satellite links including payload, uplink, and downlink effects. |
| |
Download Datasheet
Product Details | |
|
|
|

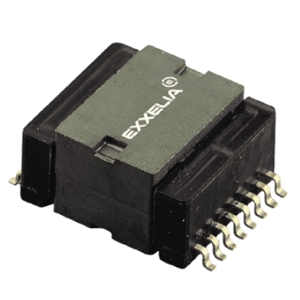

| 999 µH Space Grade Power Inductor | |
Space Qualified Inductor
from Exxelia Technologies
|
| The CCM 20 1M0 1W from Exxelia Technologies is a Space Qualified Inductor with an inductance value of 999 µH and an inductance tolerance range of +/- 5 to 10%. The inductor has a saturation current of up to 0.9 A and a DCR value of 592 mOhms. It has a mass of 21 g. It is compliant with ESCC 3201/011 standard and is designed to withstand severe environments such as space, avionics, and new space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

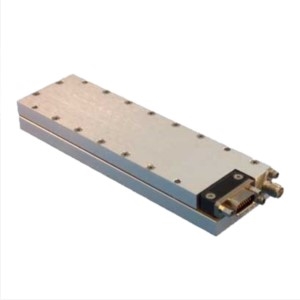

| Space Qualified S-Band Receiver | |
GNSS Receiver
from AAC Clyde Space
|
| The RX-2000 from AAC Clyde Space is a Satellite Receiver with a frequency range of 2000-2400 MHz. This receiver has data rates of 9.6-153.6 kbps and supports FM and GFSK modulation formats. It has up to 26 preset channels with 20 MHz bandwidth and a noise figure of 2 dB. It requires an input voltage of 6-16 V. The RX-2000 by AAC Clyde Space has a mass of 200 g. It is designed for microsats and small satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

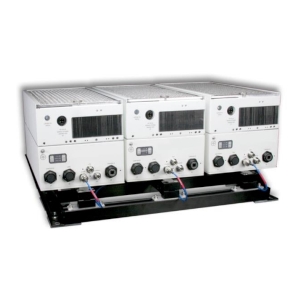

| 2500 W DBS-Band SATCOM Amplifier System | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA54250P from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 17.3 to 18.1 GHz / 17.3 to 18.4 GHz / 17.3 to 17.8 GHz. It has a bandwidth of 500 MHz/ 750 MHz and a peak TWT power of 1250 W. It supports comprehensive remote control facility standard interfaces such as RS485, RS232, and Ethernet. This antenna mount HPA has a mass of 21 kg and measures 520 x 260 x 260 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

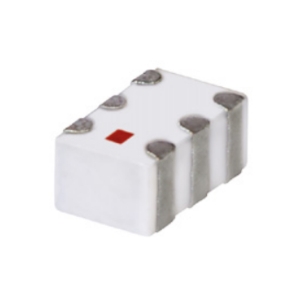

| 2100-2700 MHz RF Transformer | |
Space Qualified RF Balun
from Mini Circuits
|
| The TCW2-272+ from Mini-Circuits is a Space-Qualified RF Balun with a frequency range of 2100-2700 MHz. It has a phase unbalance of 4-10 degrees and a maximum RF power rating of up to 2 W. The RoHS-compliant RF balun is suitable for applications such as WLAN, WiMAX/WiBro, ISM, and radar. This miniature 0603 (1.6 x 0.8mm) component is designed with LTCC construction and is cost-efficient and aqueous washable. |
| |
Download Datasheet
Product Details | |
|
