| Featured Space and Satellite Products |
|
|

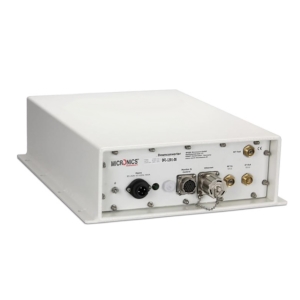

| 17.7-17.9 GHz Test Loop Translator | |
Test Loop Translator
from MICRONICS
|
| The MCS-TLT-2717-08AC from MICRONICS is an RF Test Loop Translator that is used to convert signals from one RF band to another for test and system evaluation purposes. This test loop translator has an input frequency range of 27.5-27.7 GHz and an output frequency range of 17.7-17.9 GHz. The test loop translator has a mass of 5.4 Kg and measures 322 x 108 x 391 mm. It is ideal for satellite communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|
|
|
|
|
|

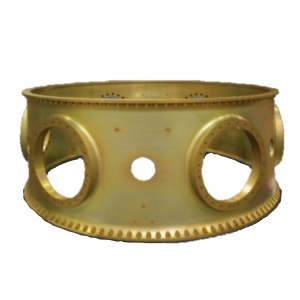

| Secondary Payload Adapter for Small Satellites | |
Satellite Payload Adapter
from Moog
|
| The 6-15-24 from Moog is a secondary small satellite payload adapter. This payload adapter has 6 ports with a port size of 15 inches. The ESPA mounts to the standard NSSL (formerly EELV) interface bolt pattern (Atlas V, Falcon 9, Delta IV, OmegA, Vulcan, New Glenn) and is a drop-in component in the launch stack. It has flown on several successful missions such as the Air Force’s STP-1 mission and NASA’s LCROSS mission. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|
|
|
|
|
|

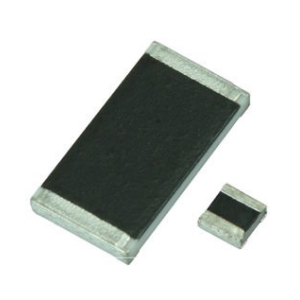

| 1 Ohm-22 MOhm Thick Film Chip Resistor | |
Space Qualified Resistor
from Vishay
|
| The RCWPM-5150-98 from Vishay is a Thick Film Chip Resistor with a resistance range of 1 ohm to 22 MOhm and has a tolerance of up to +/- 10 %. This resistance has a maximum working voltage of 125 V. It has a temperature coefficient of up to +/- 300 ppm/°C and fully conforms to the requirements of MIL-PRF-55342. The resistor uses Ruthenium oxide as the resistive element and features a solder-coated nickel barrier termination. |
| |
Download Datasheet
Product Details | |
|
|
|

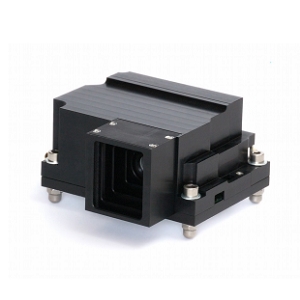

| 5 MP Satellite Monitoring Camera | |
Satellite Camera
from Crystal Space
|
| The Monitoring Camera System from Crystal Space is a Satellite Camera with a Camera Pixel VGA of 0.3-5 MP. This advanced satellite monitoring camera has a mass of 270 g and supports SpaceWire, CAN, RS-485, RS-422, UART, USB, I2C, and SPI interfaces. It qualifies for IPC-A-610 Class 3 assembly standards and is vibration, shock, and thermal tested. This radiation-hardened camera measures 82 x 88 x 39 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band SATCOM Antenna System | |
SATCOM Antenna
from Orbit Communication Systems
|
| The MPT 30WGX from Orbit Communication Systems is a Ka-Band SATCOM Antenna that operates from 19.2 - 31 GHz. It has a Tx Frequency of 29-30 GHz (Band 1) / 30-31 GHz (Band 2), Rx Frequency of 19.2-20.2 GHz (Band 1) / 20.2-21.2 GHz (Band 2). This antenna is ideal for mission aircraft, business jets, rotary-wing platforms, transport aircraft, vertical take-off & landing (VTOL), UAVs, military, and VSAT communications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|

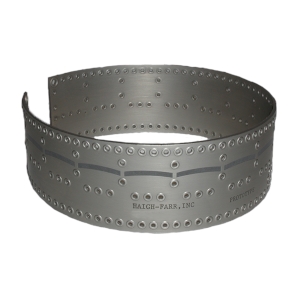

| Omnidirectional Satellite Launch Vehicle Antenna | |
Satellite Launch Vehicle Antenna
from Haigh Farr
|
| The Wraparound from Haigh Farr is a Satellite Launch Vehicle Antenna that operates from 300 MHz - 13 GHz. This Omni-directional antenna has a power consumption of 40 W, peak power of 5 kW, and a VSWR of less than 2:1. It is ideal for GPS, telemetry, data links, transponder, test and measurement, atmospheric rockets, missiles, high-speed UAVs, guided bombs, scoring systems, oil rigs, and ground plane applications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|

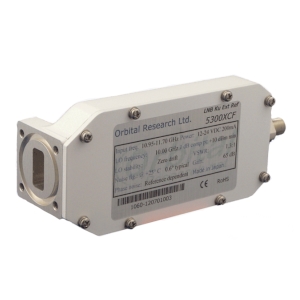

| 12.25-12.75 GHz Ku-Band SATCOM LNB | |
SATCOM Low Noise Block
from Orbital Research
|
| The LNB1130S-500X-WF60 from Orbital Research is a SATCOM Low Noise Block with an input frequency range of 12.25- 12.75 GHz and an output frequency range of 950-1450 MHz. This Ku-band LNB has a noise figure of 0.7dB and a minimum gain of 60 dB. It has an input VSWR of 2.2:1 and an output VSWR of 1.5:1. The LNB has a current consumption of 220 mA and is available with F-Type (75O) and N-Type (50O) connectors. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|

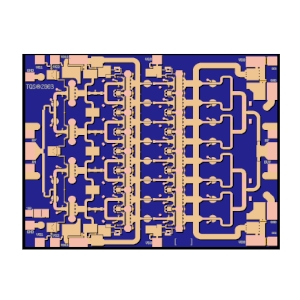

| 30-40 GHz Ka-Band RF Power Amplifier | |
RF Amplifier
from Qorvo
|
| The TGA4516 from Qorvo is an RF Power Amplifier that operates from 30 to 40 GHz. It has a small signal gain of 18 dB. It has a saturated output power of over 33 dB. The amplifier is fabricated using TriQuint’s 0.15 um 3MI pHEMT technology. It is available in a surface mount package that measures 2.79 x 2.315 x 0.1 mm and is ideal for military radar systems, Ka-band SATCOM applications, and point-point radio applications. |
| |
Download Datasheet
Product Details | |
|
