| Featured Space and Satellite Products |
|
|
|
|
|
|
|

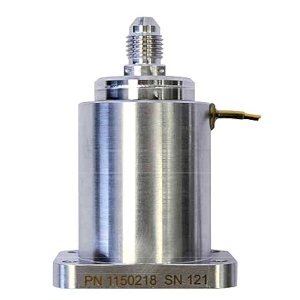

| 400 N Spacecraft Bipropellant Engine Valve | |
Spacecraft Valve
from Orbital Propulsion Centre
|
| The 400N from Orbital Propulsion Centre is a Spacecraft Valve with a supply voltage of 21-27 V, resistance of 20 Ohms. The flow-control valve is electromagnetically controlled, with a non-sliding fit suspended armature design, and has redundant electric coils. This space-qualified valve has a valve burst pressure of 88 bar and an Inlet pressure of 34 bar. It is ideal for spacecraft applications for connections between the propulsion system and the ground support equipment. |
| |
Download Datasheet
Product Details | |
|
|
|

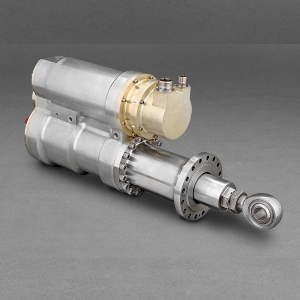

| Electromechanical Launch Vehicle Linear Actuator | |
Launch Vehicle Actuator
from Moog
|
| The TVC Stage 1 (26.5 hp) from Moog is a Launch Vehicle Actuator with a horsepower of 26.5 hp and a stall load of 40,600 lbf. This actuator has a power point of 5.83 inches/sec (at 30,000 lbf) and requires a supply voltage of 280 V. It has a stroke of 2.01 inches and a null length of 20.16 inches (centered). The actuator has a mass of 125 lbs and has been used to provide thrust vector applications for several launch vehicles such as Antares, Delta IV, Centaur, and Vega. |
| |
Download Datasheet
Product Details | |
|
|
|

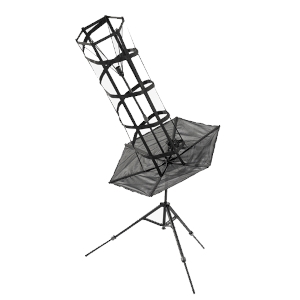

| 240-400 MHz SATCOM Antenna | |
SATCOM Antenna
from TACO Antenna
|
| The SAT-MP-320 from TACO Antenna is a SATCOM Antenna that covers the entire frequency band of 240-400 MHz. It has a total weight of 3 Kg with a circular right-hand polarization with a VSWR 2:1. The Antenna is a helical and portable system that has a ground deployment with a horizontal beam width of 68 degrees and operates at temperatures ranging from -40 to +80 C. It is designed to meet MIL-STD 810G standards and measures 50.8 x 96.5 x 92.7 cm. |
| |
Download Datasheet
Product Details | |
|
|
|

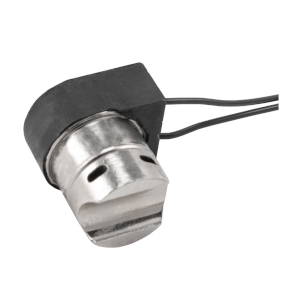

| Space-Qualified Thermostat | |
Space Qualified Temperature Sensor
from Sensata Technologies
|
| The 11041 Series from Sensata Technologies is a Space-Qualified Thermostat with a mass of 4.8 g. It follows MIL-PRF-24236 and MIL-PRF-24231 space standards. This compact thermostat has a current rating of 0.1-7 A. This thermostat is ideal for applications such as battery systems, propulsion lines, thrusters, & rocket motors, optics, instrumentation, & electronic modules, hydraulic/pneumatic actuators, cold plates, and electric motor pre-heaters & robotic arm controls. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Hardened High-Speed Comparator | |
Comparator
from STMicroelectronics
|
| The RHR801 from STMicroelectronics is a radiation hardened high-speed comparator that is designed to allow high rise and fall times while drawing a high noise supply rejection. It has a propagation time of 7 ns and a rise/fall time of 1.1 ns on 10 pF. It has a maximum input frequency range of 50-74 MHz and a low consumption of 1.4 mA. The comparator is suitable for applications such as high-speed timing, clock recovery, clock distribution, and phase detectors. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|
|
|
|
|
|

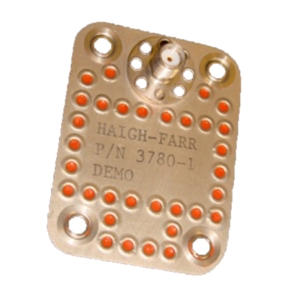

| 300 MHz-13 GHz Satellite Launch Vehicle Antenna | |
Satellite Launch Vehicle Antenna
from Haigh Farr
|
| The Flexislot from Haigh Farr is a Satellite launch Vehicle Antenna that operates from 300 MHz to 13 GHz. The antenna measures 2.8 x 2 x 0.10 inches. It is also compatible with a variety of mounting options, including flush mount, screw mount, and adhesive mount. The Flexislot is a versatile antenna that can be used in a variety of applications, including test & measurement, aero heating, tactical missiles, launch vehicles, aircraft, helicopters, missiles, and targets. |
| |
Download Datasheet
Product Details | |
|
|
|
| C-band Test Loop Translator | |
Test Loop Translator
from ETL Systems
|
| The ALT-2225C from ETL Systems is a Test Loop Translator that is designed to replace the satellite link for the test and alignment of earth station systems operating in the C-band frequency. This test loop translator has an input frequency range of 5845-6425 MHz and an output frequency range of 3620-4200 MHz. It has an LO frequency of 2225 MHz. The test loop translator has an input and output VSWR of 1.8:1 and a minimum attenuation range of 30 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|

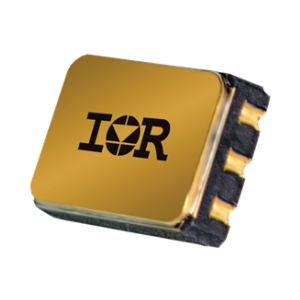

| Radiation Hardened N-Channel MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHLUC770Z4 from Infineon Technologies is a space-qualified N-Channel Enhancement Mode MOSFET that is designed for demanding space applications. This MOSFET has a drain-source breakdown voltage of 60 V and continuous drain current of 0.89 A and. It meets MIL-PRF-19500 qualification standards. This MOSFET is available in a surface mount package and is ideal for applications such as DC-DC converters, and power devices in space and radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|
| C-Band SATCOM Transceiver for VSAT Networks | |
SATCOM Transceiver
from Amplus Communication
|
| The AM-9443 Series by Amplus Communication is a C-Band SATCOM Transceiver for satellite communication applications. This C-band transceiver has a gain of 66-68 dB and requires an AC supply of 110 V for operation. It has an output power of 46-47.58 dBm. This IP65-compliant transceiver can be controlled via RS-232, and RS-485 interface and supports the FSK modulation technique. It has high-frequency stability, high gain and is ideal for VSAT networks. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 W Space Qualified DC-DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFX2809S from Crane Aerospace & Electronics is a Space Qualified DC-DC Converter with an output voltage of 1-9 V. It has an input voltage of 16-50 V and a DC isolation voltage of 500 V. This step-down converter delivers an output power of 50 W and has an efficiency of up to 92%. It is available in a hermetically sealed steel case and is designed to meet the stringent demands of satellite applications and offers optimal power conversion for aerospace systems. |
| |
Download Datasheet
Product Details | |
|
