| Featured Space and Satellite Products |
|
|

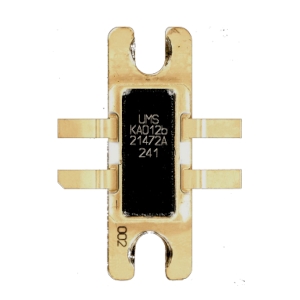

| 1-6 GHz GaN High Electron Mobility Transistor | |
RF Transistor
from United Monolithic Semiconductors
|
| The CHKA012bSYA from United Monolithic Semiconductors is an RF GaN Transistor that operates up to 6 GHz. This transistor has a small signal gain of 19 dB and a saturated output power of 90 to 130 W. It has a power-added efficiency of 58% and a saturated drain current of 3.9 A. The transistor offers general-purpose and broadband solutions for a variety of RF power applications and is suited for multi-purpose applications such as radar and telecommunication. |
| |
Download Datasheet
Product Details | |
|
|
|

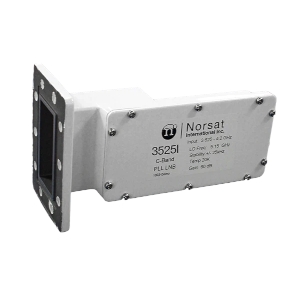

| C-Band PLL Low Noise Block | |
SATCOM Low Noise Block
from Norsat
|
| The 3000i from Norsat is a SATCOM Low Noise Block with a frequency range of 4.5-4.8 GHz. This LNB has an IF frequency range of 1150-1450 MHz and an LO frequency of 5.95 GHz. It has a maximum input and output VSWR of 2.5: 1 and a phase noise of up to -93 dBc/Hz. The LNB has a gain of 65 dB and a minimum output P1dB of 3 dBm. It requires a DC supply power of 12-24 V. The 3000i has a mass of 575 g and measures 180 x 100 x 70 mm (L x W x H). |
| |
Download Datasheet
Product Details | |
|
|
|

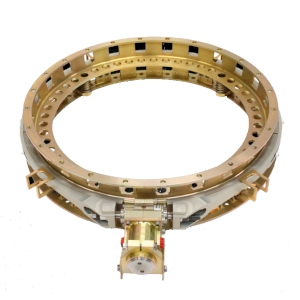

| Low Shock Small Satellite Separation System | |
Separation System
from Beyond Gravity
|
| The PAS 381S from Beyond Gravity is a Separation System with a total mass of 3.7 kg. It has a low shock output of less than 100 g’s (at 1 kHz). It has 4 - 24 separation springs with a spring energy of 1.1 joules. With a CBOD-LT separation system release mechanism it can provide a unique combination of high load capability. It has been developed to fit the ESPA 15-inch adapter interface and is designed for interfacing small spacecraft with launcher vehicles. |
| |
Download Datasheet
Product Details | |
|
|
|
| Non-Pyrotechnic Launch Vehicle Actuator | |
Launch Vehicle Actuator
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The FC3 from Ensign-Bickford Aerospace & Defense Company (EBAD) is a Launch Vehicle Actuator with a maximum load support capability of 1400 lbf. It features a redundant firing circuit and has a minimum life of 60 cycles. The actuator has a mass of 40 g and measures 1.210 x 0.760 x 0.194 inches (length x diameter x thru hole). It is utilized in satellite applications to provide a simple and effective non-pyrotechnic separation between two components or structures. |
| |
Download Datasheet
Product Details | |
|
|
|

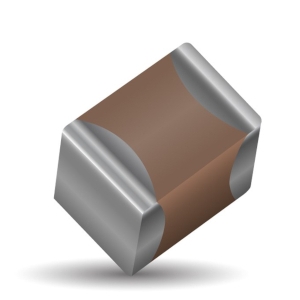

| 2.2-2200 uF Space-Qualified Ceramic Capacitors | |
Space Qualified Capacitor
from Kyocera AVX
|
| The MIL PRF 32535 BME X7R MLCC from Kyocera AVX are Space-Qualified Capacitors with a capacitance range of 2.2-2200 uF. It require a supply voltage of 16–100 V. These MIL PRF 32535-approved capacitors have a higher CV capability and incorporate Flexiterm technology for enhanced thermo-mechanical stress resistance. They are ideal for science exploration satellites, earth exploration satellites, communication satellites, and satellite launcher applications. |
| |
Download Datasheet
Product Details | |
|
|
|

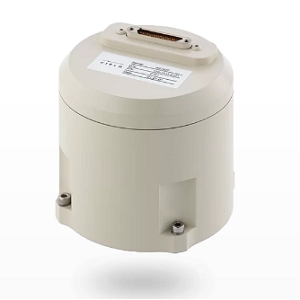

| Inertial Measurement Unit for Space Applications | |
Inertial Measurement Unit
from Cielo inertial Solutions
|
| The IMU 42 from Cielo Inertial Solutions is an Inertial Measurement Unit with a gyro angular random walk of 0.02 degree/vhr. It requires a supply voltage of 5 -15 V and has a power consumption of up to 15 W. The IMU 42 has a mass of 0.84 Kg and occupies a volume of 0.45 liters. It is tested and combat-proven on a variety of operational applications, such as rocket systems, accurate munitions, payloads, UAVs, and civilian aircraft protection systems. |
| |
Download Datasheet
Product Details | |
|
|
|

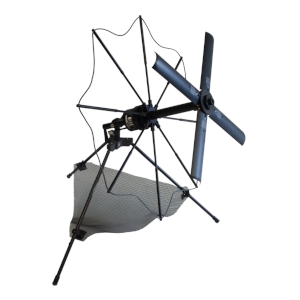

| 240 to 400 MHz High-Gain Foldable Yagi Antenna | |
SATCOM Antenna
from ARA
|
| The ARA-2576-2EX from ARA is a SATCOM Antenna that operates from 240 to 400 MHz. It has a gain of 9 dBic. It has a beamwidth of 80 degrees. The antenna comes with a black anodized finish for harsh environmental operations and can operate with any radio capable of UHF SATCOM. It has a deployment time of less than 3 minutes and is packaged in a 20 x 6 x 6-inch water-resistant bag. The antenna is ideal for military communications, and military SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

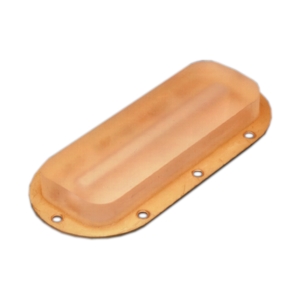

| Space Qualified Monopole Blade Launch Vehicle Antenna | |
Satellite Launch Vehicle Antenna
from L3Harris Technologies
|
| The AS-49063 from L3Harris Technologies is a Satellite Launch Vehicle Antenna with a frequency range of 408-430 MHz. This tunable monopole blade antenna has a peak gain of -3 dBi. It features a rugged construction encased in fused silica to minimize the effects of severe environments. The antenna has an altitude range of up to 50,000 feet and can withstand vibrations up to 35.87 Grms. It is ideal for extreme environments and space-type applications. |
| |
Download Datasheet
Product Details | |
|
|
|

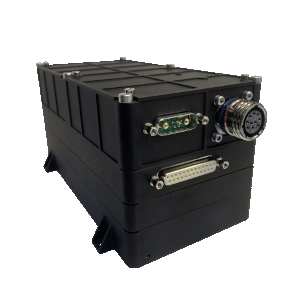

| Power Processing Unit for Hall Thruster | |
Power Processing Unit for Thruster
from Space Electric Thruster Systems (SETS)
|
| The PPU-200 from Space Electric Thruster Systems (SETS) is a Power Processing Unit for thrusters with an anode power supply of up to 180 W. It supports CAN or RS-485 communication interfaces. This PPU for thrusters has a mass of 1.9 kg and measures 218 x 120 x 103 mm. It transforms onboard voltage to power the Hall thruster and is suitable for any mission requirement, from government-class spacecraft to commercial LEO satellite constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

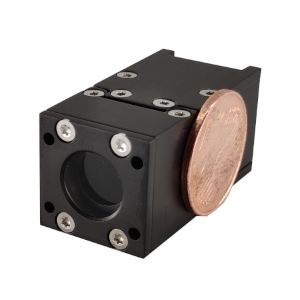

| Star Tracker for CubeSats and Large Satellites | |
Star Tracker
from ARCSEC
|
| The Twinkle Star Tracker from ARCSEC is a Star Tracker with a field of view of 10.6 degrees and an update rate of 10 Hz. This star tracker has an accuracy of 3-30 arcseconds and can track up to 64 stars. It features a fast lost-in-space algorithm and has partial image download capability. It uses a radiation-shielded lens. The star tracker has a mass of 35g and measures 40 x 20 x 20 mm. It is extremely compact and easy to interface with CubeSats and large satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5.85-6.65 GHz SATCOM Frequency Band Translator | |
Test Loop Translator
from GeoSync Microwave
|
| The TRE-6.25–3.8 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 5.85–6.65 GHz. This test loop translator has an LO frequency of 2.45 GHz and an impedance of 50 Ohms. It has a return loss of 18 dB and a noise figure of up to 25 dB. The test loop translator supports RS485 and RS422 serial interfaces. It requires a supply voltage of 90–250 VAC. The TRE-6.25-3.8 has a mass of 2.7 kg and features multiple remote connections. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 GHz Space Qualified Coaxial Cable Assembly | |
RF Cable Assembly
from Smiths Interconnect
|
| The Space NXT 065QT from Smiths Interconnect is an RF Cable Assembly with a maximum frequency of 50 GHz and an impedance of 50 Ohms. This cable assembly has a shielding effectiveness of greater than 100 dB/ft and a capacitance of 26 pF/ft. The cable assembly has a minimum bend radius of 6.35 mm and a mass of 0.614 Kg/100m. It is ideal for applications such as satcom, navigation, military, scientific programs, manned space flight, and GEO, MEO, and LEO satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

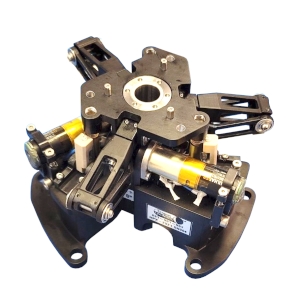

| Space-Qualified Pointing Mechanism | |
Gimbal
from Tethers Unlimited
|
| The COBRA HPX from Tethers Unlimited is a Space-Qualified Gimbal with a pointing accuracy of up to 0.5 degrees and a slew rate of up to 30 degrees/sec. This mechanism has a payload capacity of 1.25 Kg and a system mass of 0.45 kg. It has a working range of +/- 75 degrees (elevation) and a continuous azimuth of 360 degrees. It measures 115 x 69 mm (diameter x stowed) and is ideal for communication antennas, sensor instruments & propulsion devices. |
| |
Download Datasheet
Product Details | |
|
|
|
| 40 W Ku-Band SATCOM Transceiver | |
SATCOM Transceiver
from Gilat Satellite Networks
|
| The WTUE-040A01 from Gilat Satellite Networks is a SATCOM Transceiver with a transmit frequency range of 13.75-14.5 GHz and a receive frequency range of 10.7-12.75 GHz. This transceiver has an IF frequency range of 950-1700 MHz (transmit), and 950-2000 MHz (receive). The transceiver requires an AC power supply of 115 V. It has a mass of 9.5 Kg and measures 45 × 34.5 × 6.6 cm. The transceiver is airborne-qualified for commercial and military satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 W Radiation Hardened Isolated Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-28-3R3S from Microchip is a Radiation-Hardened DC-DC Converter that converts a DC input voltage of 20-40 V to a DC output voltage of 3.3 V. It has an output current of 10 A. This converter has a MIL-STD-461-compliant internal EMI filter and consists of differential and common mode components to attenuate conductive EMI noise effectively. This radiation-hardened converter is available in a through-hole package and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
