| Featured Space and Satellite Products |
|
|

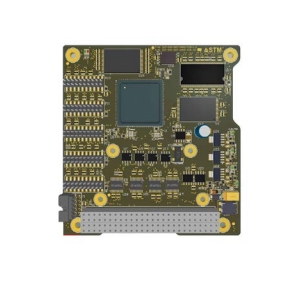

| On-Board Computer for Nano Satellite Platforms | |
Satellite On-Board Computer (OBC)
from STM Defense International
|
| The NANOSATPRO from STM Defense International is a Satellite On-Board Computer (OBC) that is designed for low-earth orbit operations and has a lifetime of up to 2 years in orbit. This OBC has an 8051 Softcore or Leon 3 FT Softcore processor with a clock frequency of 48 MHz. |
| |
Download Datasheet
Product Details | |
|
|
|

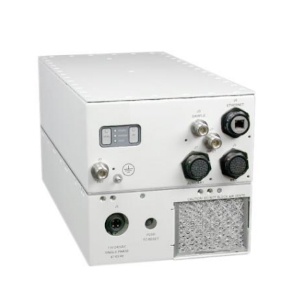

| 400 W Ku-Band SATCOM Amplifier System | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA4340P from SpacePath Communications is a Ku-band SATCOM Amplifier System with a frequency range of 12.75-14.80 GHz. It has a bandwidth of 500-750 MHz and a TWT peak power of 400 W. It has a gain of greater than 70 dB and an input and output VSWR of 1.3:1. |
| |
Download Datasheet
Product Details | |
|
|
|

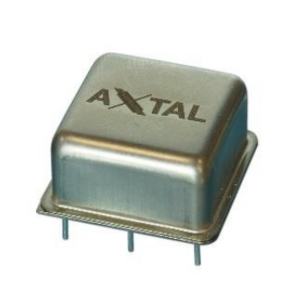

| 80-125 MHz Oscillator for Space Applications | |
Space Qualified Oscillator
from AXTAL GmbH & Co. KG
|
| The AXIOM75SH from AXTAL GmbH & Co. KG is a Space-Qualified Oscillator with a frequency range of 80-125 MHz and a frequency stability of up to +/- 400 ppb. The oscillator has a harmonic of -30 dBc and a spurious of -90 dBc. It is ideal for LEO and MEO space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

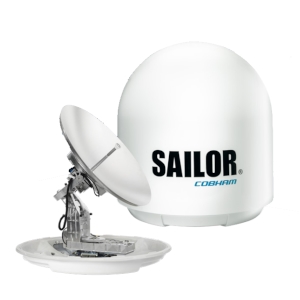

| 17.7-20.2 GHz Ka-Band VSAT Terminal | |
VSAT Terminal
from Cobham Satcom
|
| The SAILOR 1000 XTR GX-R2 from Cobham Satcom is a VSAT Terminal with an Rx frequency range of 17.7- 20.2 GHz and a Tx frequency range of 27.5- 30.0 GHz. It has Rapid Deployment technology with an advanced RF package with a new Ka-band transceiver (XCVR). |
| |
Download Datasheet
Product Details | |
|
|
|

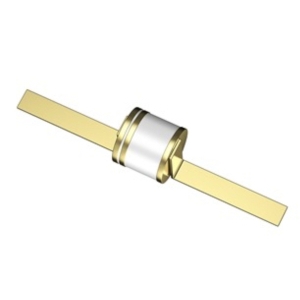

| 70V Space-Qualified Silicon Schottky Diode | |
Space Qualified Diode
from Infineon Technologies
|
| The BAS70-T1 (ES) from Infineon Technologies is a Space Qualified Diode with a forward current of 70 mA. It is ESA space-qualified and is ideal for general-purpose applications such as high-speed switching, circuit protection, voltage clamping, and high-level detecting and mixing. |
| |
Download Datasheet
Product Details | |
|
|
|

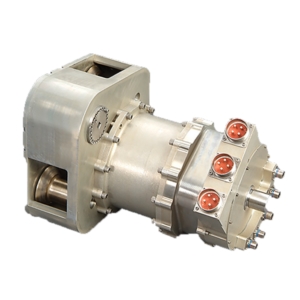

| Electromechanical Rotary Launch Vehicle Actuator | |
Launch Vehicle Actuator
from Moog
|
| The Triplex Body Flap Surface (7.5 hp) from Moog is a Launch Vehicle Actuator with a horsepower of 7.5 hp and a stall torque of 255,000 in/lbf. It has a mass of 106.5 kg and a stroke of 22.5 revs. The actuator has been used on several launch vehicles such as Antares, Delta IV, Centaur, and Vega. |
| |
Download Datasheet
Product Details | |
|
|
|

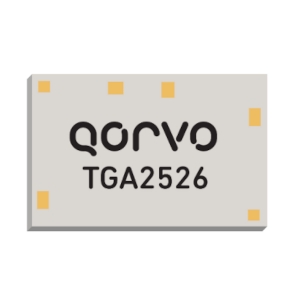

| 2-20 GHz Low Noise RF Amplifier | |
RF Amplifier
from Qorvo
|
| The TGA2526 from Qorvo is a Space Qualified Low Noise RF Amplifier that operates from 2-20 GHz. It has a gain of 15-17.5 dB and a saturated output power of 20-22 dBm. It is suitable for a variety of wideband systems such as point-to-point radios, radar warning receivers, gain blocks, LNA, and electronic warfare applications. |
| |
Download Datasheet
Product Details | |
|
|
|

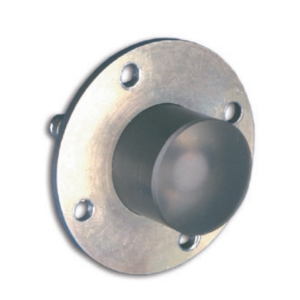

| S-Band Launch Vehicle Telemetry Antenna | |
Satellite Launch Vehicle Antenna
from L3Harris Technologies
|
| The AS-49034 from L3Harris Technologies is a Satellite Launch Vehicle Antenna that operates from 2000-2300 MHz. It has a gain of +3 dBi and a beamwidth of 3 dB. It is highly pyrotechnic shock resistant and has a wide operating temperature range. It weighs 1.14 kg and is ideal for telemetry, tracking, and communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Reaction Wheel for CubeSats | |
Reaction Wheel
from Astrofein
|
| The RW25 from Astrofein is a Reaction Wheel that is designed for CubeSats and has a lifetime of up to 2 years in low earth orbit. It has an angular momentum of 0.03 Nms and a torque of 0.002 Nm. It has a rotation speed range of 5000-5500 rpm and supports SPI and CAN interfaces. |
| |
Download Datasheet
Product Details | |
|
|
|
| 15-75 mN Stationary Plasma Thruster | |
Spacecraft Thruster
from Safran Group
|
| The PPS X00 from Safran Group is a Spacecraft Thruster with a thrust range of 15-75 mN and a specific impulse of 1300-1650 sec. It has a mass of less than 3.2 kg and a lifespan exceeding 5,000 hours. It is designed for LEO applications and to handle small satellites in orbit raising and station keeping. |
| |
Download Datasheet
Product Details | |
|
|
|

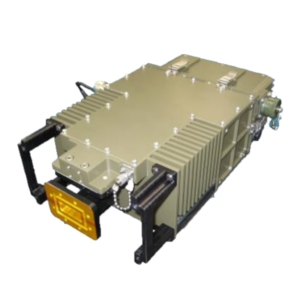

| X-Band SATCOM Block Up Converter | |
SATCOM Block Up Converter
from ACORDE
|
| The ACMB-X20W-E1-V3 from ACORDE is a SATCOM Block Up Converter with an input frequency range of 950-1450 MHz and an output frequency range of 7.9-8.4 GHz. It is ideal for professional and military satellite communication systems such as ground, SOTP, SOTM, and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|

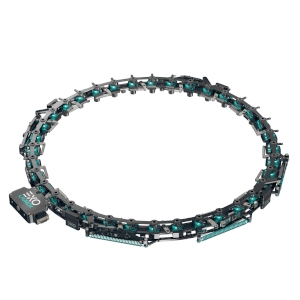

| Shock-Free Microsatellite Separation System | |
Separation System
from Exolaunch
|
| The CarboNIX from Exolaunch is a Separation System that is designed for microsats weighing between 10 and 500 Kg. The separation system has an S-Ring mass of 0.185- 0.490 kg and an L-Ring mass of 1.4-3.75 kg. It has a TRL of 9 and has flight heritage on multiple launch vehicles. |
| |
Download Datasheet
Product Details | |
|
|
|

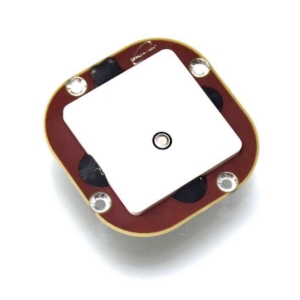

| Active GPS-L1 Patch Antenna for SmallSats | |
Satellite Antenna
from SkyFox Labs
|
| The nanoPATCH-L1 from SkyFox Labs is a Satellite Antenna that has a GPS-L1 operating frequency band. It has a mass of 29g and measures 50 × 50 × 12.5 mm. It is ideal for CubeSats and smallsats and is designed to provide strong signal reception for GPS satellites in space. |
| |
Download Datasheet
Product Details | |
|
|
|
| Satellite Link Emulator for Geostationary Satellites | |
Satellite Link Emulator
from Polaris
|
| The PSLE-L-100D from Polaris is a Satellite Link Emulator with a frequency range of 950-1450 MHz and an operating bandwidth of 100 MHz. It is ideal for applications such as satellite modem tests, VSAT tests, satellite payload tests, UAV tests, earth terminal tests, satellite system integration test beds, and mobile transceiver tests. |
| |
Download Datasheet
Product Details | |
|
|
|

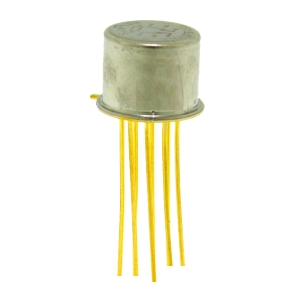

| Non-Latching Space Qualified DPDT Relay | |
Space Qualified Solid State Relay
from Teledyne Relays
|
| The HR412V from Teledyne Relays is a Space-Qualified Solid-State Relay with a frequency range of DC to 1 GHz. The relay has a breakdown voltage of 100 V and an insulation resistance of 1000- 10000 MOhms. It has a release time of 2 ms and an operating time of 3 ms. |
| |
Download Datasheet
Product Details | |
|
