| Featured Space and Satellite Products |
|
|

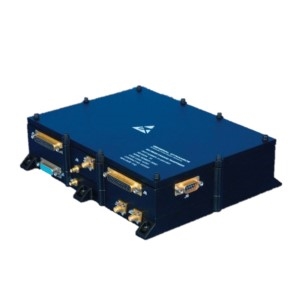

| Space-Qualified S-Band Transponder | |
Satellite Transponder
from General Dynamics Mission Systems
|
| The MST-500 from General Dynamics Mission Systems is a Satellite Transponder with a transmitter operating frequency range of 2200-2300 MHz and a receiver operating frequency range of 1760-2120 MHz. It is used to provide reliable earth-to-space craft and spacecraft-to-spacecraft communications. |
| |
Download Datasheet
Product Details | |
|
|
|

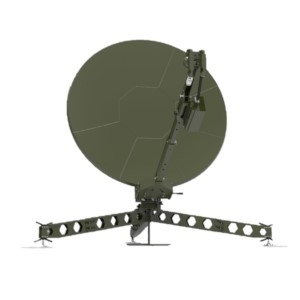

| VSAT Fly-Away Antenna System | |
VSAT Terminal
from ReQuTech AB
|
| The PICO240m from ReQuTech AB is a VSAT Terminal with interchangeable feeds for X, Ku, and Ka frequency bands. The PICO240m has a mass of 335 kg and an assembly time of less than 20 minutes. It comes with a fully integrated manually pointed fly-away terminal and is Eutelsat and ITU-R S.465 compliant. |
| |
Download Datasheet
Product Details | |
|
|
|

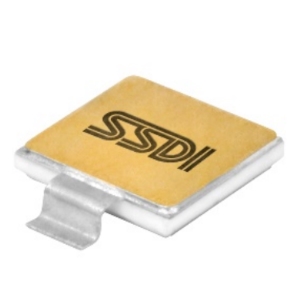

| 100 A Low Leakage High Voltage Schottky Rectifier | |
Space Qualified Diode
from Solid State Devices
|
| The SED100LT300 from Solid State Devices is a Space Qualified Diode with an average rectified forward current of 100 A. It has an instantaneous forward voltage drop of 0.54 - 1.03 V and a peak repetitive reverse voltage of 300 V. The Schottky rectifier has a mass of 1.1 g and features an Eutectic die attach. |
| |
Download Datasheet
Product Details | |
|
|
|
| C-Band Transceiver for VSAT Networks | |
SATCOM Transceiver
from Amplus Communication
|
| The AM-9441/2 Series from Amplus Communication is a SATCOM Transceiver with a transmit frequency range of 5850- 7025 MHz and a receive frequency range of 3625-4800 MHz. It has a transmit gain of 63 dB and a receive gain of 45 dB. It is designed for use in SCPC, DAMA, and TDMA VSAT satellite earth stations. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Qualified Flexible Coaxial Cable Assembly | |
RF Cable Assembly
from Radiall
|
| The SHF 5MS from Radiall is a Space-Qualified RF Cable Assembly with a frequency range of DC to 26.5 GHz and an attenuation range of 0.23-1.37 dB/m. It has a propagation time of 4.03 ns/m and an insulation resistance of greater than 3 x 10^5 MOhm/m. It has a static bend radius of 25 mm and a maximum mass of 53.5 g/m. |
| |
Download Datasheet
Product Details | |
|
|
|
| Non-Pyrotechnic Launch Vehicle Actuator | |
Launch Vehicle Actuator
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The FC8 from Ensign-Bickford Aerospace & Defense Company (EBAD) is a Launch Vehicle Actuator with a maximum load support capability of 9600 lbf. The FC8 is ideal for applications such as solar arrays and instrument deployment, instrument launch locks, optic covers, and satellite separation systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.15 µH Space Grade Fixed Chip Inductor | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S26202 from Vanguard Electronics is a Space-Grade Inductor with an inductance range of 0.132-0.165 uH and an inductance tolerance of +/- 10%. The inductor comes in a transfer moulded package with internal welded terminations and is suitable for space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 6U Space-Qualified CubeSat Deployer | |
Satellite Deployer
from Astro-und Feinwerktechnik Adlershof GmbH
|
| The PSL6U XL from Astro-und Feinwerktechnik Adlershof GmbH is a Space-Qualified Satellite Deployer that is designed for 6U CubeSat configurations. The deployer measures 366 x 226.3 x 100 mm and has a large clearance for attachments on the CubeSat, and access ports for maintenance on the launch site. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM | | |
|
|

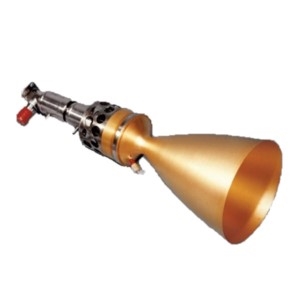

| 445 N Monopropellant Spacecraft Thruster | |
Spacecraft Thruster
from Moog
|
| The MONARC-445 from Moog is a Spacecraft Thruster with a steady state thrust of 445 N and a specific impulse of 234 sec. It has a mass of 1.6 kg and measures 41 x 14.8 cm (length x diameter). It has a wide range of applications that include earth observation, communication, space exploration, and missile defense applications. |
| |
Download Datasheet
Product Details | |
|
|
|

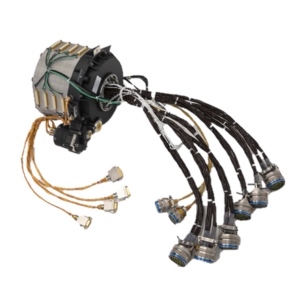

| Solar Array Drive Mechanism for GEO Applications | |
Solar Array Drive Mechanism
from Kongsberg
|
| The KARMA-5 TG from Kongsberg is a Solar Array Drive Mechanism with an axial torque of 1800N and a radial torque of 2000 N. This solar array drive mechanism has a redundant two-phase bipolar stepper motor with an operational life span of 15 years which makes it ideal for LEO and GEO applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band SATCOM Low Noise Block | |
SATCOM Low Noise Block
from Orbital Research
|
| The Wideband Ka LNB - Superior from Orbital Research is a SATCOM Low Noise Block with a frequency of 17.2 to 22.2 GHz. This Ka-Band LNB is used as a satellite converter and is ideal for in-flight entertainment systems, military operations, and IoT or NextGen applications. |
| |
Download Datasheet
Product Details | |
|
|
|

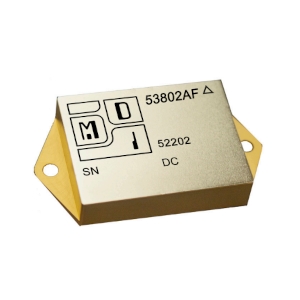

| Space-Qualified Hybrid Solid-State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53802 from Modular Devices is a Space Qualified Solid-State Relay with a bias voltage of 4.7 to 5.3 V and a bias current of 100 to 200 mA. This relay has a command current of 0.1 to 2 mA and a contact current of 20 A. It has a magnetic latch relay configuration with an SPST switch configuration. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Collins Aerospace
|
| The Model 0118MF from Collins Aerospace is a Space Qualified Temperature Sensor that is designed to measure temperatures in the range of -269° C to 400° C. It is ideal for satellites and scientific exploration vehicles and is used on launch vehicles such as Atlas V, Delta IV/RS-68, Ariane 5/Vulcain, and K-1/NK-33. |
| |
Download Datasheet
Product Details | |
|
|
|

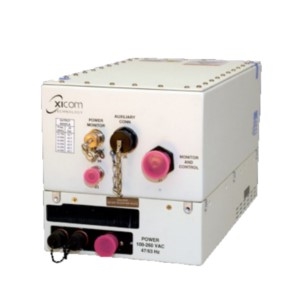

| Tri-Band Antenna Mount High Power Amplifier | |
SATCOM Amplifier System
from Comtech Xicom Technology
|
| The XTD-150T from Comtech Xicom Technology is a SATCOM Amplifier System with a frequency range of 5.850-14.5 GHz. This compact amplifier system has a travelling wave tube output power of 90-150 W and a small signal gain of 57 dB. It supports RS-485 and RS-232 interfaces and is intended for outdoor operations. |
| |
Download Datasheet
Product Details | |
|
|
|

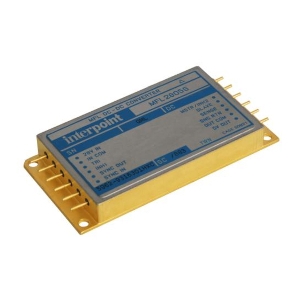

| 28 V Space Qualified DC-DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFL2805D from Crane Aerospace & Electronics is a Space Qualified DC-DC Converter with an input voltage range of 16-40 V. It has a capacitance of 1000 uF and a ripple voltage of 50-100 mVpp. It measures 3.005 x 1.505 x 0.400 inches and is ideal for use in programs requiring high reliability, small size, and high efficiency. |
| |
Download Datasheet
Product Details | |
|
