| Featured Space and Satellite Products |
|
|
| Reaction Wheel for 6-12U CubeSats | |
Reaction Wheel
from Rocket Lab
|
| The 30 mNms RW-0.03 from Rocket Lab is a Reaction Wheel that has a momentum range of 0.03-0.04 Nms and a torque of ±0.5 to ±2 mNm. This CubeSat reaction wheel comes with a built-in control CPU for speed and torque control and supports UART or I2C/SMBus command or telemetry interface. It requires a supply voltage of 3.4-8 V and a supply power of 0.1-1.8 W. |
| |
Download Datasheet
Product Details | |
|
|
|
| Carbon Fiber Manpack Antenna | |
SATCOM Antenna
from C-COM
|
| The MP-100-MOT from C-COM is a SATCOM Antenna that is designed to operate in the Ku, Ka, or X band. This antenna has a transmit frequency range of 13.75-14.50 GHz (Ku-band). The MP-100-MOT has a setup time of less than 10 minutes and is ideally suited to applications such as emergency response, disaster management, public safety, broadcasting, and media. |
| |
Download Datasheet
Product Details | |
|
|
|

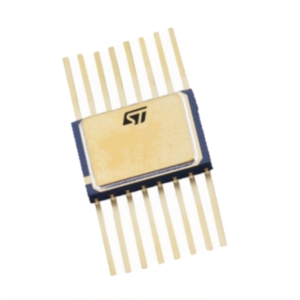

| 2A Radiation Hardened Positive Voltage Regulator | |
Space Qualified LDO Voltage Regulator
from STMicroelectronics
|
| The RHFL6000A from STMicroelectronics is a Space Qualified LDO Voltage Regulator with an input voltage of 2.5-12 V and an output voltage of 12.3 V. It has a low dropout voltage of 0.3 V. This adjustable voltage regulator has programmable output short-circuit current and comes with remote sensing operations. It is available in a surface mount FLAT-16P package. |
| |
Download Datasheet
Product Details | |
|
|
|

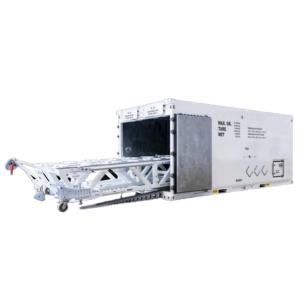

| Spacecraft Transport and Storage Container | |
Satellite Transport Box
from Beyond Gravity
|
| The SCO-M from Beyond Gravity is a Satellite Transport Container that can accommodate payloads of mass 1470 Kg. It can be transported via a truck, train, ship, or aeroplane. The container comes with temperature, humidity, acceleration, and pressure monitoring devices and is used to protect the satellites during road and air transportation and long-term storage. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.01 - 6 GHz Low Noise Monolithic Amplifier | |
RF Amplifier
from Mini Circuits
|
| The CMA-62+?from Mini-Circuits is an SMT Space-Qualified RF Amplifier with a frequency range of 0.01 - 6 GHz a high gain of 33 dB.. It is fabricated using HBT technology and features a Ni-pd-Au terminal finish. This RoHS-compliant amplifier measures 3 x 3 x 1.14 mm and is ideal for base station infrastructure, portable wireless, CATV & DBS, LTE, and GPS applications. |
| |
Download Datasheet
Product Details | |
|
|
|

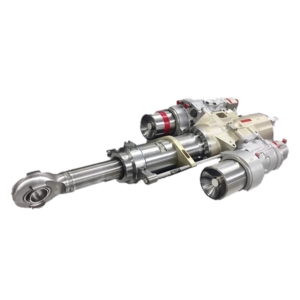

| Launch Vehicle Electro Hydrostatic Actuator | |
Launch Vehicle Actuator
from Moog
|
| The Type V CEHA from Moog is a Launch Vehicle Actuator that has combined design elements from electric and electrohydraulic actuation. It has an actuator mass of 190.5 Kg and requires a DC voltage of 280 V. The Actuator System consists of a servomotor, hydraulic pump, accumulator, and hydraulic ram. It is ideal for launch vehicle integration to simplify pre-launch checkouts. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0180-03-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator with a frequency range of DC to 18 GHz an attenuation value of 3 dB. It has a maximum mass of 14.2 g and a length of 24.13 mm. The attenuator has been used on several successful missions such as the Emirates Mars mission, Parker solar probe, Europa Clipper, and GPS satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified CubeSat Deployer | |
Satellite Deployer
from Astro-und Feinwerktechnik Adlershof GmbH
|
| The PSL3U from Astro-und Feinwerktechnik Adlershof GmbH is a Space-Qualified Satellite Deployer that is designed for 3U CubeSat configurations. It features a non-explosive lock and release mechanism and a closed envelope for high safety. The deployer has a large clearance for attachments on the CubeSat, and access ports for maintenance on the launch site. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM | | |
|
|

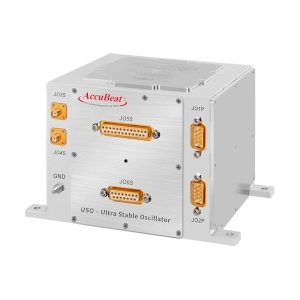

| Ultra Stable Oscillator for Deep Space Exploration | |
Space Qualified Atomic Clock
from AccuBeat
|
| The Ultra Stable Oscillator (USO) from AccuBeat is a space-qualified atomic clock with an o/p frequency of 57.51852 Hz and a spurious of -80 dBc. It has a frequency stability of 5E-13 (at 1 sec). It has a mass of less than 2 Kg and measures 132.6 x 120 x 105 mm. The USO is radiation-hardened up to 50 krad (Si) and is specially designed for Deep Space exploration programs. |
| |
Download Datasheet
Product Details | |
|
|
|

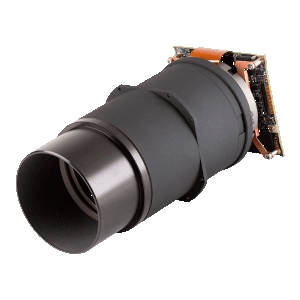

| High-Performance Camera System for CubeSats | |
Satellite Camera
from Dragonfly Aerospace
|
| The CHAMELEON IMAGER from Dragonfly Aerospace is a Satellite Camera System that is designed for CubeSats. This camera has a spatial resolution of 10-20 m. It features an integrated mass data storage with a capacity of up to 128 Gigabytes. The imager has a mass of 1.6 kg and measures 100 mm x 100 mm x 215 mm (2.5 U). It is compatible with 6U satellite bus size. |
| |
Download Datasheet
Product Details | |
|
|
|

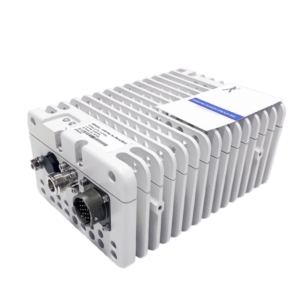

| 16 W Ku-Band SATCOM BUC | |
SATCOM Block Up Converter
from Amkom Design Group Inc
|
| The AFKU16 from Amkom Design Group is a SATCOM Block Up Converter with an operating RF frequency range of 13.75-14.50 GHz, an IF frequency range of 950-1700 MHz and measures 166 x 120 x 79 mm. This BUC has a gain of 68 dB and a maximum spurious of -60 dBc. It has a phase noise of up to -95 dBc/Hz, an input VSWR of 1.5:1, and an output VSWR of 1.3:1. |
| |
Download Datasheet
Product Details | |
|
|
|

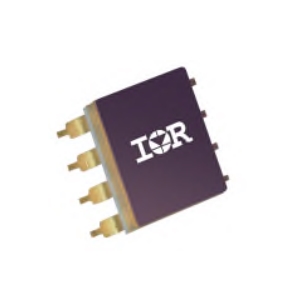

| 100 V Radiation Hardened Solid-State Relay | |
Space Qualified Solid State Relay
from Infineon Technologies
|
| The RDHA701CD10A2NX from Infineon Technologies is a space-qualified solid-state relay with an input voltage range of 1-1.85 V and a leakage current of 1 uA. This relay has a contact resistance of 0.25-0.8 Ohms. It has a mass of 0.8 g and is ideal for solar array management, heater controls, bus switching, ground power isolation, and generic load-switching applications. |
| |
Download Datasheet
Product Details | |
|
|
|

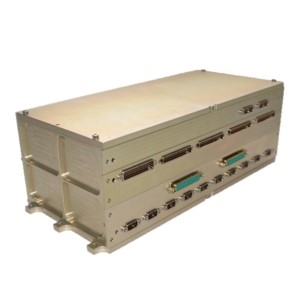

| Spacecraft Power System for LEO Applications | |
Power Conditioning and Distribution Unit (PCDU)
from Spaceteq
|
| The Spaceteq EOS1 from Spaceteq is a Power Conditioning and Distribution Unit (PCDU) that has a peak output power of up to 700 W (Power control unit). The power system can support up to 5 solar panels and up to 10 battery module interfaces. It has a mass of 2.2 Kg. The Spaceteq EOS1 has a design life of 7 years and is designed for spacecraft in low earth orbit. |
| |
Download Datasheet
Product Details | |
|
|
|

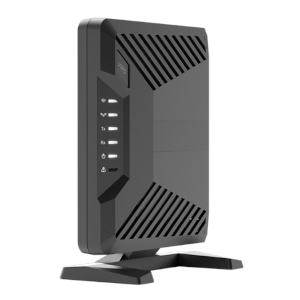

| Wideband DVB-S2X Two-Way Satellite Modem | |
Satellite Modem
from ST Engineering
|
| The MDM2010 from ST Engineering is a Satellite Modem with a Tx frequency range of 2750-3000 MHz and an Rx frequency range of 950-2150 MHz. The modem requires an input voltage of 100-260 V and has a maximum power consumption of 21W. It has a mass of 0.48 kg and measures 8.2 x 17.7 x 21.2 cm. It is suitable for consumers, SOHOs, SMEs, and government markets. |
| |
Download Datasheet
Product Details | |
|
|
|

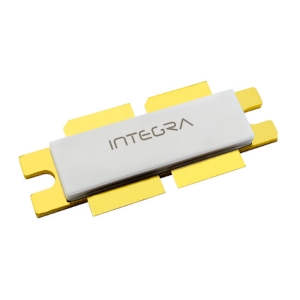

| L-Band RF Power Transistor | |
RF Transistor
from Integra Technologies, Inc.
|
| The IGN1011S3600 from Integra Technologies is an RF Transistor with a frequency range of 1030-1090 MHz. This transistor has an output power greater than 3600 W and a gain of 18-22 dB. It features GaN on SiC HEMT technology. The transistor is RoHS and REACH compliant and is ideally suited for uplink and downlink transponders and L-band avionics IFF and SSR systems. |
| |
Download Datasheet
Product Details | |
|
