| Featured Space and Satellite Products |
|
|
| Space Qualified Limiter + LNA Module | |
RF Amplifier
from Criteria Labs
|
| The CL-3010 from Criteria Labs is a combination limiter and low-noise amplifier (LNA) designed for military, space and high-reliability RF systems requiring protection and amplification across a wide frequency range. Operating from 4 GHz to 20 GHz, it provides 4 W continuous-wave survivability while delivering a small-signal gain of 17 dB, enabling reliable signal amplification in demanding electronic warfare and communication environments. The amplifier achieves an output power of 21 dBm with a low noise figure of 2 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

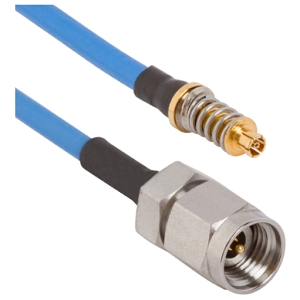

| Space-Qualified Female Cable Assembly | |
Space Qualified Cable Assembly
from SV Microwave
|
| The 7032-7164 from SV Microwave is a space-qualified flexible cable assembly designed for high-frequency signal transmission in aerospace, satellite and defense systems. Operating across a frequency range from DC to 40 GHz, it provides reliable RF performance for demanding communication and instrumentation applications. This cable assembly delivers shielding effectiveness greater than 100 dB, ensuring excellent protection against electromagnetic interference and signal leakage. |
| |
Download Datasheet
Product Details | |
|
|
|

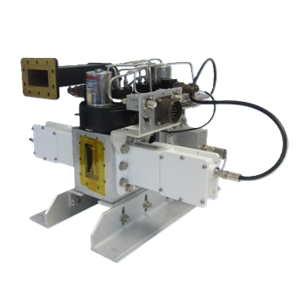

| 3.4–4.2 GHz C-Band Redundant LNB System | |
Low Noise Block
from Communications & Power Industries
|
| The BRC-1200 from Communications & Power Industries is a C-band redundant low-noise block (LNB) system designed to provide uninterrupted satellite signal reception in mission-critical communication networks. Available in 1:1 and 1:2 redundant configurations, the system automatically switches to a backup LNB in the event of a primary unit failure, ensuring continuous operation and minimizing service interruptions. It supports an input frequency range of 3.40–4.20 GHz. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.22–2.2 µH Space-Grade Tin/Lead Inductor | |
Space Qualified Inductor
from Vishay
|
| The IHLP-1212BZ-1L from Vishay is a space-qualified power inductor designed for high-reliability power conversion and filtering applications. Offering inductance values from 0.22 to 2.2 µH, it provides efficient energy storage and current handling for aerospace and spaceborne electronic systems. This tin/lead-plated inductor supports inductance tolerances of ±20% and provides direct current resistance ranging from 10.1 to 59.9 mΩ, minimizing power losses in high-current circuits. It features self-resonant frequencies between 54 and 211 MHz. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|

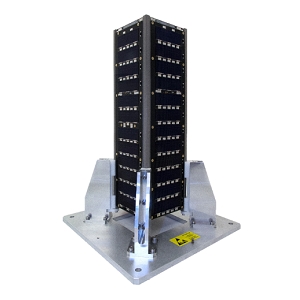

| 3U CubeSat Satellite Bus & Platform | |
Satellite Bus & Platform
from IMT
|
| The CubeSat 3U Platform from IMT is a Satellite Bus & Platform designed for 3U CubeSat missions with a total spacecraft mass of under 6 kg. It integrates high-efficiency AzurSpace 3J solar cells based on GaInP/GaAs/Ge technology with CoverGlass 100 CMX, delivering an average power of 4 W in a body-mounted configuration. The platform includes a 43 Wh Li-ion battery pack available in multiple configurations and supports payloads up to 1.5U with regulated 3.3 V and 5 V power buses protected against latch-up events. |
| |
Download Datasheet
Product Details | |
|
|
|

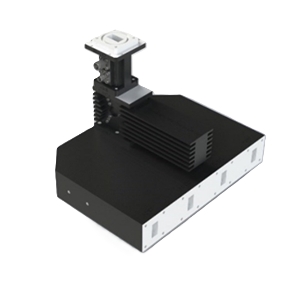

| Four-Way Isolated Power Combiner/Divider | |
Space Qualified Power Divider
from Scientific Microwave Corporation
|
| The SMC-120019 from Scientific Microwave Corporation is a four-way isolated power combiner/divider designed for high-frequency millimeter-wave applications requiring efficient signal distribution and combining. Operating across the 40–60 GHz frequency range, it provides broadband performance for advanced radar, satellite communication, and high-power RF systems. This waveguide power combiner/divider utilizes a WR-19 rectangular waveguide interface and maintains a low VSWR of 1.5:1. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4-16 GHz GaAs MMIC Double Balanced Mixer | |
Space Qualified RF Mixer
from Marki Microwave
|
| The MMIQ-0416HCH-2 from Marki Microwave is a Passive GaAs MMIC IQ Mixer designed for high-linearity up-conversion, down-conversion, image rejection and single-sideband mixing applications. Operating over a broad RF and LO frequency range of 4 GHz to 16 GHz with an IF frequency range from DC to 6 GHz, this mixer provides exceptional broadband performance for advanced microwave and communication systems. It features a typical conversion loss of 12 to 13 dB, image rejection of up to 29 dB, LO-to-RF isolation of 59 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

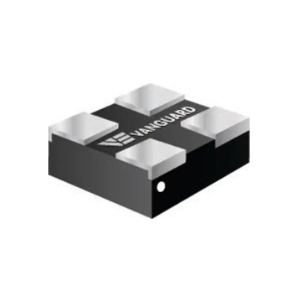

| 0.81 mH Space-Qualified Power Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SIT215 from Vanguard Electronics is a space-qualified power transformer designed for reliable energy transfer and signal conditioning in high-reliability aerospace and satellite power systems. Featuring a primary inductance of 0.81 mH and a current rating of 1.1 A, it supports efficient power conversion and filtering functions within spacecraft electronics. It offers a DC resistance range of 0.27 ohms and provides a dielectric withstand voltage of 300 V, ensuring electrical insulation and operational safety in demanding environments. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| 2.25-3.05 MHz Quartz Crystal | |
Space Qualified Quartz Crystal
from Wi2Wi
|
| The CR125/U-Series from PDI is a MIL-Qualified Quartz Crystal designed to provide precise frequency control and dependable timing performance in mission-critical electronic systems. Operating across a frequency range of 2.25 to 3.05 MHz in the fundamental mode, this crystal unit is well suited for applications requiring accurate and stable clock generation in military, aerospace, communication and navigation platforms. Housed in a rugged resistance-welded HC-48 package, it delivers reliable operation in harsh environments. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2-Way RF Power Divider | |
Space Qualified Power Divider
from Radiall
|
| The R434612002 from Radiall is a 2-Way RF Power Divider designed for efficient RF signal distribution across two output paths in communication, test and measurement systems. Operating over a frequency range of 0.4 to 6 GHz, it provides low insertion loss of less than 1.2 dB, ensuring minimal signal attenuation and maintaining high signal integrity. With port-to-port isolation of at least 17 dB, it effectively minimizes crosstalk and interference, enabling reliable and balanced signal distribution. It has an amplitude balance of ±0.3 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC to 40 GHz Schottky Diode Signal Limiter | |
Power Limiter
from Marki Microwave
|
| The HLM-40PSM from Marki Microwave is a GaAs Schottky Diode Signal Limiter designed to protect sensitive RF components while maintaining excellent linearity across a broad DC to 40 GHz operating bandwidth. It features high third-order intercept performance (IP3), low insertion loss of less than 1.75 dB, and flat leakage levels from 11 to 19 dBm. With excellent return loss from DC through the Ka-band, it is well suited for broadband microwave and millimeter-wave applications. It supports a peak input power of up to 9.5 W. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1600-6000 MHz Space Qualified RF Mixer | |
Space Qualified RF Mixer
from Mini Circuits
|
| The MAC-60 from Mini Circuits is a Space-Qualified Hermetically Sealed RF Mixer engineered for high-reliability microwave frequency conversion. Operating over an RF and LO frequency range of 1600 to 6000 MHz and supporting an IF frequency range from DC to 2000 MHz, it enables flexible up conversion and down conversion across broadband satellite communication and radar systems. This mixer delivers a typical conversion loss of 6.0-7.3 dB and has an RF input power value of +1 dBm. |
| |
Download Datasheet
Product Details | |
|
