Triaxial IEPE Accelerometer

SKU: 3313A1H

Space Qualified Accelerometer by Dytran Instruments (23 more products)

Note : Your request will be directed to Dytran Instruments.

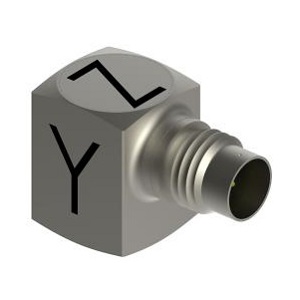

3313A1H Image

The 3313A1H from Dytran Instruments is a Space Qualified Accelerometer with Mass 0.14 Oz, Acceleration Range ±5000 g, Sensitivity 1 mV/g, Transverse Sensitivity 0.05, Supply Voltage 18 to 30 V. More details for 3313A1H can be seen below.

Product Specifications

Product Details

  • Part Number
    3313A1H
  • Manufacturer
    Dytran Instruments
  • Description
    Triaxial IEPE Accelerometer

General Parameters

  • Mass
    0.14 Oz
  • Acceleration Range
    ±5000 g
  • Element Style
    Quartz Planar Shear
  • Ground Isolation
    Case Ground
  • Housing Material
    Titanium
  • Sensitivity
    1 mV/g
  • Transverse Sensitivity
    0.05
  • Supply Voltage
    18 to 30 V
  • Bias Voltage
    7 to 9 V
  • Current
    2 to 20 mA
  • Discharge Time
    0.2 to 1 sec
  • Frequency Response
    1.2 to 10000 Hz
  • Linearity
    ±1%
  • Mounting
    Tapped Hole
  • Connector
    1/4-28. 4 Pin
  • Operating Temperature
    -51 to 162 Degree C
  • Application
    HALT/HASS, Modal and structural analysis, Environmental Stress Screening (ESS), Noise, Vibration and Harshness (NVH), General purpose triaxial vibration measurements
