Adjustable Phase Shifter for SATCOM and Military Systems

SKU: PE82P5017

Analog Phase Shifter by Pasternack
3 more products
Download Datasheet Request Information

Note : Your request will be directed to Pasternack.

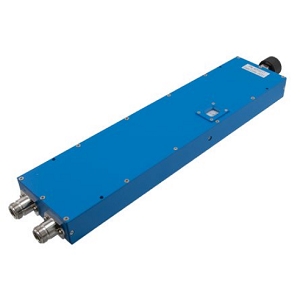

PE82P5017 Image

The PE82P5017 from Pasternack is a Space Qualified Adjustable Phase Shifter that operates from DC to 4 GHz. It has the capability for phase shifting from 0° to 720° and a maximum CW power of 100 W. This analog phase shifter has 2 dB maximum insertion loss and a maximum VSWR of 1.5:1. With N-Type female connectors, this RF phase shifter has a rotary dial design technology for continuous adjustment. This adjustable phase shifter is available in an enclosure measuring 372.11 x 75.95 x 30.48 mm and is ideal for applications including phase array antenna systems, test & measurement, radar and military communication systems.

Product Specifications

Product Details

  • Part Number
    PE82P5017
  • Manufacturer
    Pasternack
  • Description
    Adjustable Phase Shifter for SATCOM and Military Systems

General Parameters

  • Frequency
    DC to 4 GHz
  • Phase Shift
    0 to 720 Degrees
  • Insertion Loss
    2 dB
  • Phase Adjustment
    0 to 180 Degrees
  • VSWR
    1.50:1
  • VSWR Input
    1.50:1
  • Power dBm
    50 dBm
  • Power W
    100 W
  • Power CW
    100 W
  • Peak Power
    5 kW
  • Impedance
    50 Ohms
  • Grade
    Military
  • Application Industry
    Test & Measurement, Military, Radar, SATCOM
  • Application Type
    Communication Systems, Phase Array Antenna System
  • Package Type
    Module with Connectors
  • Connector
    N Type, N Type - Female
  • Connectors Input
    N Type - Female
  • Connectors Output
    N Type - Female
  • Dimension
    372.11 x 75.95 x 30.48 mm
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C
