X-Band, Block Upconverter from 7.9 to 8.4 GHz

SKU: SWF-G1S-KX-115

Block Upconverter by ETL Systems (15 more products)

Note : Your request will be directed to ETL Systems.

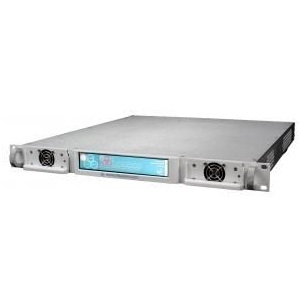

SWF-G1S-KX-115 Image

The SWF-G1S-KX-115 from ETL Systems is a Block Upconverter with AC Voltage 85 to 264 VAC, Gain -1 to 29 dB, Gain Flatness ±0.85 to 1.6 dB, Image Rejection 60 dB, Impedance 50 Ohms. Tags: Rack Mount. More details for SWF-G1S-KX-115 can be seen below.

Product Specifications

Product Details

  • Part Number
    SWF-G1S-KX-115
  • Manufacturer
    ETL Systems
  • Description
    X-Band, Block Upconverter from 7.9 to 8.4 GHz

General Parameters

  • AC Voltage
    85 to 264 VAC
  • Application
    Teleports & Earth Stations, Satellite Operations, Government & Defence applications, Telemetry, Tracking & Command, High Resilience applications
  • Connector
    SMA, BNC
  • Dimension
    1U high x 550mm deep x 19 Inches
  • Gain
    -1 to 29 dB
  • Gain Control
    No
  • Gain Flatness
    ±0.85 to 1.6 dB
  • Image Rejection
    60 dB
  • Impedance
    50 Ohms
  • Input Frequency
    950 MHz to 1.45 GHz
  • Input Frequency Band
    L Band
  • Input Power
    -35 dBm
  • Interface
    Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. TCP/IP, SNMP V3 & HTTPS
  • LO Frequency
    6.950 GHz
  • Noise Figure
    12 to 15 dB
  • OIP3
    21.2 to 23.2 dBm
  • Operating Temperature
    0 to 45 Degree C
  • Output Frequency
    7.9 to 8.4 GHz
  • Output Frequency Band
    X Band
  • Output Power
    7.7 to 10.7 dBm(P1)
  • P1 dB
    7.7 to 10.7 dBm
  • Package Type
    Rack Mount
  • Phase Noise
    -110 to -50 dBc/Hz
  • Redundancy
    Yes
  • Return Loss
    -15 to -9 dB
  • Storage Temperature
    -20 to 75 Degree C
  • Weight
    10 Kg
  • Note
    Power Consumption : 150 W
