UBM-6.1-INV

Block Upconverter by GeoSync Microwave
93 more products
Download Datasheet Request Information

Note : Your request will be directed to GeoSync Microwave.

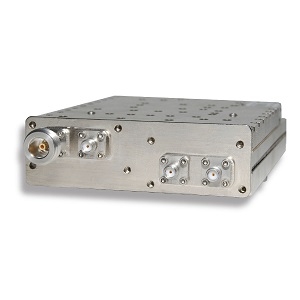

UBM-6.1-INV Image

The UBM-6.1-INV from GeoSync Microwave is a Block Upconverter with DC Voltage 12 V, Gain 30 dB, Image Rejection 60 dB, Impedance 50 Ohms, Input Frequency 950 MHz to 1.525 GHz. Tags: Module with Connectors. More details for UBM-6.1-INV can be seen below.

Product Specifications

Product Details

  • Part Number
    UBM-6.1-INV
  • Manufacturer
    GeoSync Microwave
  • Description
    Single Band Block Converter Modules with High Performance from 5.85 to 6.425 GHz

General Parameters

  • Connector
    N Type, N Type - Female, SMA, SMA - Female
  • DC Voltage
    12 V
  • Dimension
    4 x 6 x 1.2 Inches
  • Gain
    30 dB
  • Gain Control
    Yes
  • Image Rejection
    60 dB
  • Impedance
    50 Ohms
  • Input Frequency
    950 MHz to 1.525 GHz
  • Input Frequency Band
    L Band
  • Interface
    RS422, RS485 and 10/100 Base-T Ethernet
  • LO Frequency
    7.375 GHz
  • OIP3
    25 dBm(IP3)
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    5.85 to 6.425 GHz
  • Output Frequency Band
    C Band
  • Output Power
    13 dBm(P1)
  • P1 dB
    13 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -115 to -45 dBc/Hz
  • Redundancy
    No
  • Return Loss
    18 dB
  • Spurious
    -80 dBm
  • Storage Temperature
    -50 to 70 Degree C
  • Weight
    1.4 Kg
  • Note
    Power Consumption : 25 W
