XC-Band, Block Upconverter from 13.75 to 14.50 GHz

SKU: NJT5668

Block Upconverter by New Japan Radio
3 more products
Download Datasheet Request Information

Note : Your request will be directed to New Japan Radio.

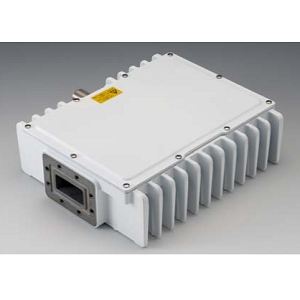

NJT5668 Image

The NJT5668 from New Japan Radio is a Block Upconverter with DC Voltage 15 to 30 V, Gain 58 dB(Conversion Gain), Impedance 50 Ohms, Input Frequency 950 MHz to 1.265 GHz, LO Frequency 5.76 GHz. Tags: Module with Connectors. More details for NJT5668 can be seen below.

Product Specifications

Product Details

  • Part Number
    NJT5668
  • Manufacturer
    New Japan Radio
  • Description
    XC-Band, Block Upconverter from 13.75 to 14.50 GHz

General Parameters

  • Connector
    N Type, N Type - Female
  • DC Voltage
    15 to 30 V
  • Dimension
    7.50 x 6.58 x 2.32 Inches(L x W x H)
  • Gain
    58 dB(Conversion Gain)
  • Gain Control
    No
  • Impedance
    50 Ohms
  • Input Frequency
    950 MHz to 1.265 GHz
  • Input Frequency Band
    L Band
  • LO Frequency
    5.76 GHz
  • Operating Temperature
    -40 to 55 Degree C
  • Output Frequency
    6.725 to 7.025 GHz
  • Output Frequency Band
    X Band, C Band
  • Output Power
    33 dBm(P1)
  • P1 dB
    33 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -90 to -60 dBc/Hz
  • Redundancy
    No
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-137
  • Weight
    2.54 Kg
