Thin Film Binary MOS Capacitors

SKU: CBB

Space Qualified Capacitor by Vishay
5 more products
Download Datasheet Request Information

Note : Your request will be directed to Vishay.

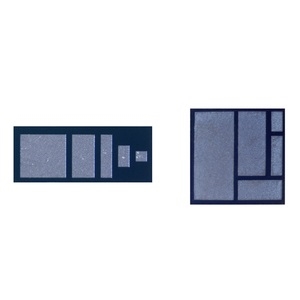

CBB Image

The CBB from Vishay is a Space Qualified Capacitor with Capacitance 31 pF, Voltage 75 V, Operating Temperature -55 to 15 Degree C. Tags: Surface Mount. More details for CBB can be seen below.

Product Specifications

Product Details

  • Part Number
    CBB
  • Manufacturer
    Vishay
  • Description
    Thin Film Binary MOS Capacitors

General Parameters

  • Space Standard
    MIL-STD-883
  • Capacitance
    31 pF
  • Voltage
    75 V
  • Tolerance
    ±10%
  • Dielectric Material
    Silicon dioxide (MOS)
  • Dissipation Factor
    0.10%
  • Operating Temperature
    -55 to 15 Degree C
  • Package Type
    Surface Mount
  • Standard
    MIL-STD-883 Class H or K
  • Termination
    Au, Al
  • Dimension
    0.019 x 0.048 Inches
