5 V, 2.8 A, Buck/Step down DC to DC Converter

SKU: MFK2805D

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

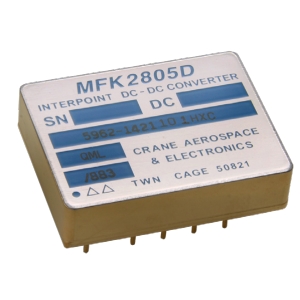

MFK2805D Image

The MFK2805D from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 16 to 50 V, Output Voltage 1 5 V, Output Current 1 2.8 A, Output Power 20000 mW, Output Voltage 2 -5 V. Tags: Module, Buck/Step down. More details for MFK2805D can be seen below.

Product Specifications

Product Details

  • Part Number
    MFK2805D
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    5 V, 2.8 A, Buck/Step down DC to DC Converter

General Parameters

  • Segment
    Satellite
  • Type
    Buck/Step down
  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    16 to 50 V
  • Output Voltage 1
    5 V
  • Output Current 1
    2.8 A
  • Output Power
    20000 mW
  • Output Voltage 2
    -5 V
  • Output Current 2
    -2 to 2 A
  • Isolation Voltage
    500 Vdc
  • Efficiency
    0.81
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Module
  • Application
    Aerospace
  • Dimension
    37.08 × 28.70 × 9.14 mm
  • Capacitance
    1000 uF
  • Regulation
    5 to 100 mV (Line), 5 to 250 mV (Load)
  • Ripple Voltage
    80 to 90 mVpp
  • Storage Temperature
    -65 to 150 Degree C
