28 V Space Qualified DC-DC Converter

SKU: MFL2805D

DC to DC Converter by Crane Aerospace & Electronics
116 more products
Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

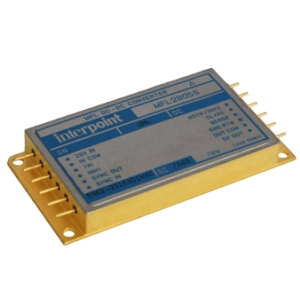

MFL2805D Image

The MFL2805D from Crane Aerospace & Electronics is a Space Qualified DC-DC Converter with an input voltage range of 16-40 V. This converter has an output voltage of 5 V and an output current of 7-10 A. It has an output power of up to 50000 mW and a

Product Specifications

Product Details

  • Part Number
    MFL2805D
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    28 V Space Qualified DC-DC Converter

General Parameters

  • Segment
    Satellite
  • Type
    Buck/Step down
  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    16 to 40 V
  • Output Voltage 1
    5 V
  • Output Current 1
    7 to 10 A
  • Output Power
    50000 mW
  • Output Voltage 2
    -5 V
  • Output Current 2
    -5 to 5 A
  • Isolation Voltage
    500 Vdc
  • Efficiency
    0.8
  • Operating Temperature
    -55 to 125 Degree C
  • Industry
    Industrial, Space
  • Package Type
    Module
  • Application
    Aerospace
  • Dimension
    76.33x x 38.23 × 10.16 mm
  • Capacitance
    1000 uF
  • Regulation
    0 to 100 mV (Line), 0 to 100 mV (Load)
  • Space Standard
    MIL-PRF38534
  • Standard
    MIL-PRF38534 Class H
  • Ripple Voltage
    50 to 100 mVpp
  • Storage Temperature
    -65 to 150 Degree C
