15 V, 3.03 to 4.34 A, Buck/Step down DC to DC Converter

SKU: MFL2815D

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

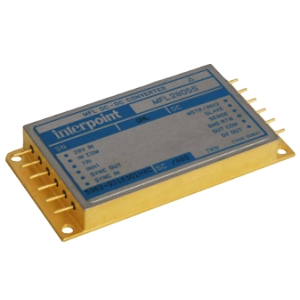

MFL2815D Image

The MFL2815D from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 16 to 40 V, Output Voltage 1 15 V, Output Current 1 3.03 to 4.34 A, Output Power 65000 mW, Output Voltage 2 -15 V. Tags: Module, Buck/Step down. More details for MFL2815D can be seen below.

Product Specifications

Product Details

  • Part Number
    MFL2815D
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    15 V, 3.03 to 4.34 A, Buck/Step down DC to DC Converter

General Parameters

  • Segment
    Satellite
  • Type
    Buck/Step down
  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    16 to 40 V
  • Output Voltage 1
    15 V
  • Output Current 1
    3.03 to 4.34 A
  • Output Power
    65000 mW
  • Output Voltage 2
    -15 V
  • Output Current 2
    -2.16 to 2.16 A
  • Isolation Voltage
    500 Vdc
  • Efficiency
    0.87
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Module
  • Application
    Aerospace
  • Dimension
    76.33x x 38.23 × 10.16 mm
  • Capacitance
    1000 uF
  • Regulation
    0 to 100 mV (Line), 10 to 150 mV (Load)
  • Ripple Voltage
    50 to 150 mVpp
  • Storage Temperature
    -65 to 150 Degree C
