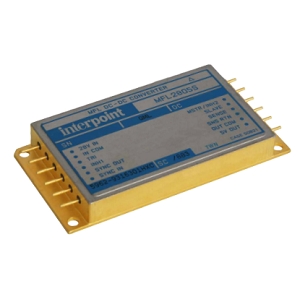

The MFL2828S from Crane Aerospace & Electronics is a Space Qualified DC-DC Converter with an input voltage range of 16-40 V. This converter has an output voltage of 28 V and an output current of 2.32 A. It has an output power of up to 65 W and an input current of 14-100 mA. The MFL converter is manufactured in a fully certified and qualified MIL-PRF-38534 facility and has an efficiency of up to 86%. The converter has a line regulation range of 20-60 mV and a load regulation range of 20-75 mV. It has a capacitance of 1000 uF and a ripple voltage of 100-200 mVpp. The converter provides short circuit protection (by restricting the current) and output overload protection along with soft-start function to prevent large current draw and minimize overshoot.
The MFL2828S features fully isolated magnetic feedback, fixed high switching frequency, and transient protection up to 80 volts for 50 ms. It measures 3.005 x 1.505 x 0.400 inches and is ideal for use in programs requiring high reliability, small size, and high efficiency.
