15 V, 0.1 A, Buck/Step down DC to DC Converter

SKU: MGH2815S

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

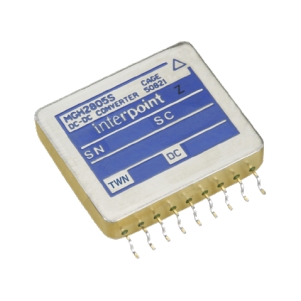

MGH2815S Image

The MGH2815S from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 12 to 50 V, Output Voltage 1 15 V, Output Current 1 0.1 A, Output Power 1500 mW, Isolation Voltage 500 Vdc. Tags: Module, Buck/Step down. More details for MGH2815S can be seen below.

Product Specifications

Product Details

  • Part Number
    MGH2815S
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    15 V, 0.1 A, Buck/Step down DC to DC Converter

General Parameters

  • Segment
    Satellite
  • Type
    Buck/Step down
  • Configuration
    Isolated
  • Number of Output
    Single
  • Input Voltage
    12 to 50 V
  • Output Voltage 1
    15 V
  • Output Current 1
    0.1 A
  • Output Power
    1500 mW
  • Isolation Voltage
    500 Vdc
  • Efficiency
    0.79
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Module
  • Application
    Aerospace
  • Dimension
    25.65 × 22.35 × 6.35 mm
  • Capacitance
    200 uF
  • Regulation
    80 to 350 mV (Line), 760 to 1600 mV (Load)
  • Ripple Voltage
    35 to 250 mVpp
  • Storage Temperature
    -65 to 150 Degree C

Technical Documents
