DC to DC Converter from 14.55 to 15.45 V

SKU: SMFL2815S

DC to DC Converter by Crane Aerospace & Electronics
116 more products
Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

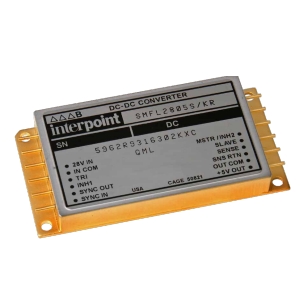

SMFL2815S Image

The SMFL2815S from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 16 to 40 V, Output Voltage 1 14.55 to 15.45 V, Output Current 1 0 to 4.33 A, Output Power 0 to 65 W, Power Consumption 10 to 16 W (Dissipation). Tags: Surface Mount. More details for SMFL2815S can be seen below.

Product Specifications

Product Details

  • Part Number
    SMFL2815S
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    DC to DC Converter from 14.55 to 15.45 V

General Parameters

  • Segment
    Satellite
  • Configuration
    Isolated
  • Number of Output
    Single
  • Input Voltage
    16 to 40 V
  • Output Voltage 1
    14.55 to 15.45 V
  • Output Current 1
    0 to 4.33 A
  • Output Power
    0 to 65 W
  • Power Consumption
    10 to 16 W (Dissipation)
  • Efficiency
    80 to 85%
  • Operating Temperature
    -55 to 125 Degree C
  • Industry
    Space
  • Package Type
    Surface Mount
  • Application
    Space
  • Dimension
    3.005 x 1.505 x 0.4 Inches
  • Capacitance
    1000 uF
  • Frequency
    525 to 675 kHz
  • Number of Outputs
    Single
  • Regulation
    Line : 0 to 20 mV, Load : 20 mV
  • Space Standard
    MIL-PRF-38534, MIL-STD-883
  • Standard
    MIL-PRF-38534 Class H, MIL-PRF-38534 Class K
  • Ripple Voltage
    30 to 110 mVpp
  • Transient Response
    Step Load : ±500 to 600 mV pk, Step Line : ±250 to 500 mV pk
  • Weight
    86 g
  • Storage Temperature
    -65 to 150 Degree C
