Single Output DC to DC Converter from 5.05 to 5.35 V

SKU: SMHF285R2S

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

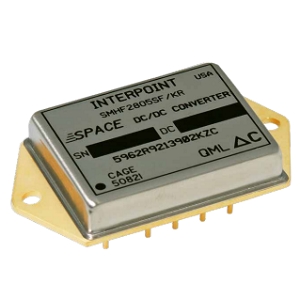

SMHF285R2S Image

The SMHF285R2S from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 16 to 45 V, Output Voltage 1 5.05 to 5.35 V, Output Current 1 2.4 A, Output Power 0 to 12.5 W, Power Consumption 3.5 to 8 W (Dissipation). Tags: Surface Mount. More details for SMHF285R2S can be seen below.

Product Specifications

Product Details

  • Part Number
    SMHF285R2S
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    Single Output DC to DC Converter from 5.05 to 5.35 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Single
  • Input Voltage
    16 to 45 V
  • Output Voltage 1
    5.05 to 5.35 V
  • Output Current 1
    2.4 A
  • Output Power
    0 to 12.5 W
  • Power Consumption
    3.5 to 8 W (Dissipation)
  • Efficiency
    70 to 78%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    300 uF
  • Frequency
    480 to 620 kHz
  • Number of Outputs
    Single
  • Regulation
    Line : 1 to 10 mV, Load : 20 to 50 mV
  • Ripple Voltage
    5 to 30 mVpp
  • Transient Response
    Step Load : ±150 to 400 mV pk, Step Line : ±110 to 800 mV pk
  • Weight
    30 g
  • Storage Temperature
    -65 to 150 Degree C
