Dual Output DC to DC Converter from 4.82 to 5.18 V

SKU: SMHF4205D

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

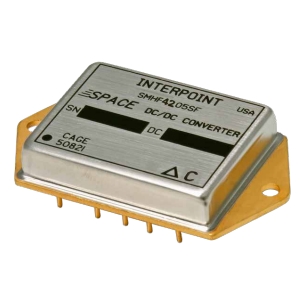

SMHF4205D Image

The SMHF4205D from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 35 to 55 V, Output Voltage 1 4.82 to 5.18 V, Output Current 1 ±1.2 to 2.4 A, Output Power ±6 to 12 W, Power Consumption 3 to 6 W (Dissipation). Tags: Surface Mount. More details for SMHF4205D can be seen below.

Product Specifications

Product Details

  • Part Number
    SMHF4205D
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    Dual Output DC to DC Converter from 4.82 to 5.18 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    35 to 55 V
  • Output Voltage 1
    4.82 to 5.18 V
  • Output Current 1
    ±1.2 to 2.4 A
  • Output Power
    ±6 to 12 W
  • Power Consumption
    3 to 6 W (Dissipation)
  • Efficiency
    72 to 79%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    47 uF
  • Frequency
    480 to 620 kHz
  • Number of Outputs
    Dual
  • Regulation
    Line : 2 to 100 mV, Load : 5 to 150 mV
  • Ripple Voltage
    30 to 110 mVpp
  • Transient Response
    Step Load : ±200 to 500 mV pk
  • Weight
    30 g
  • Storage Temperature
    -65 to 150 Degree C
