DC to DC Converter from 4.9 to 5.1 V

SKU: SMRT2805S

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

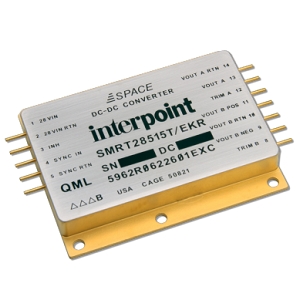

SMRT2805S Image

The SMRT2805S from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 19 to 56 V, Output Voltage 1 4.9 to 5.1 V, Output Current 1 6 A, Output Power 30 W, Power Consumption 28 W (Dissipation). Tags: Surface Mount. More details for SMRT2805S can be seen below.

Product Specifications

Product Details

  • Part Number
    SMRT2805S
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    DC to DC Converter from 4.9 to 5.1 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Single
  • Input Voltage
    19 to 56 V
  • Output Voltage 1
    4.9 to 5.1 V
  • Output Current 1
    6 A
  • Output Power
    30 W
  • Power Consumption
    28 W (Dissipation)
  • Efficiency
    66 to 71%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    5000 uF
  • Frequency
    270 to 330 kHz
  • Number of Outputs
    Single
  • Regulation
    Line : 5 to 30 mV, Load : 5 to 40 mV
  • Ripple Voltage
    180 to 200 mVpp
  • Transient Response
    Step Load : ±450 mV pk, Step Line : ±500 mV pk
  • Weight
    100 g
  • Storage Temperature
    -65 to 150 Degree C
