  5. SMRT2812D

Dual Output DC to DC Converter from 11.76 to 12.24 V

SKU: SMRT2812D

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

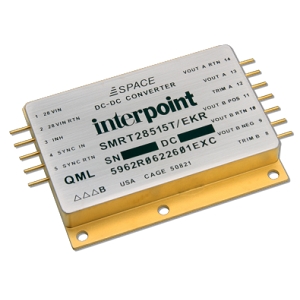

SMRT2812D Image

The SMRT2812D from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 19 to 56 V, Output Voltage 1 11.76 to 12.24 V, Output Current 1 1.46 A, Output Power 17.5 W, Power Consumption 20 W (Dissipation). Tags: Surface Mount. More details for SMRT2812D can be seen below.

Product Specifications

Product Details

  • Part Number
    SMRT2812D
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    Dual Output DC to DC Converter from 11.76 to 12.24 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    19 to 56 V
  • Output Voltage 1
    11.76 to 12.24 V
  • Output Current 1
    1.46 A
  • Output Power
    17.5 W
  • Power Consumption
    20 W (Dissipation)
  • Efficiency
    75 to 76%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    5000 uF
  • Frequency
    270 to 330 kHz
  • Number of Outputs
    Dual
  • Regulation
    Line : 5 to 25 mV, Load : 5 to 50 mV
  • Ripple Voltage
    150 to 200 mVpp
  • Transient Response
    Step Load : ±450 mV pk, Step Line : ±1000 mV pk
  • Weight
    100 g
  • Storage Temperature
    -65 to 150 Degree C

Technical Documents
