Triple Output DC to DC Converter from -15.53 to 15.3 V

SKU: SMRT283R315T

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

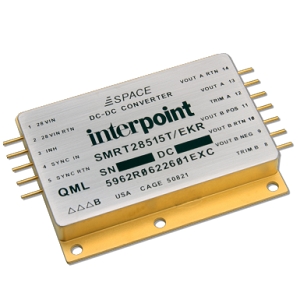

SMRT283R315T Image

The SMRT283R315T from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 19 to 56 V, Output Voltage 1 -15.53 to 15.3 V, Output Current 1 ±0.5 to 4.5 A, Output Power ±7.5 to 15 W, Power Consumption 28 W (Dissipation). Tags: Surface Mount. More details for SMRT283R315T can be seen below.

Product Specifications

Product Details

  • Part Number
    SMRT283R315T
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    Triple Output DC to DC Converter from -15.53 to 15.3 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Triple
  • Input Voltage
    19 to 56 V
  • Output Voltage 1
    -15.53 to 15.3 V
  • Output Current 1
    ±0.5 to 4.5 A
  • Output Power
    ±7.5 to 15 W
  • Power Consumption
    28 W (Dissipation)
  • Efficiency
    68 to 71%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    1000 to 5000 uF
  • Frequency
    270 to 330 kHz
  • Number of Outputs
    Triple
  • Regulation
    Line : 5 to 70 mV, Load : 5 to 300 mV
  • Ripple Voltage
    140 to 180 mVpp
  • Transient Response
    Step Load : ±450 mV pk, Step Line : ±500 to 750 mV pk
  • Weight
    100 g
  • Storage Temperature
    -65 to 150 Degree C
