Dual Output DC to DC Converter from 11.44 to 12.56 V

SKU: SMSA2812D

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

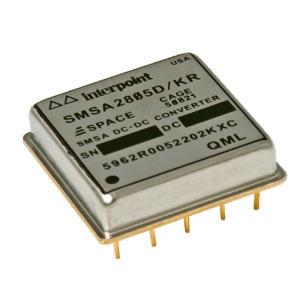

SMSA2812D Image

The SMSA2812D from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 16 to 40 V, Output Voltage 1 11.44 to 12.56 V, Output Current 1 ±0.208 to 0.417 A, Output Power ±2.5 to 5 W, Power Consumption 1.3 to 1.9 W (Dissipation). Tags: Surface Mount. More details for SMSA2812D can be seen below.

Product Specifications

Product Details

  • Part Number
    SMSA2812D
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    Dual Output DC to DC Converter from 11.44 to 12.56 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    16 to 40 V
  • Output Voltage 1
    11.44 to 12.56 V
  • Output Current 1
    ±0.208 to 0.417 A
  • Output Power
    ±2.5 to 5 W
  • Power Consumption
    1.3 to 1.9 W (Dissipation)
  • Efficiency
    69 to 73%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    100 uF
  • Frequency
    400 to 600 kHz
  • Number of Outputs
    Dual
  • Regulation
    Line : 10 to 60 mV, Load : 10 to 120 mV, Cross : 1000 mV
  • Ripple Voltage
    80 to 300 mVpp
  • Transient Response
    Step Load : ±200 to 600 mV pk, Step Line : ±200 to 500 mV pk
  • Weight
    15 g
  • Storage Temperature
    -65 to 150 Degree C
