Single Output DC to DC Converter from 4.99 to 5.39 V

SKU: SMSA285R2S

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

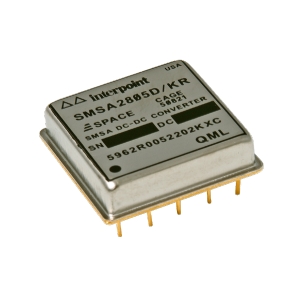

SMSA285R2S Image

The SMSA285R2S from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 16 to 40 V, Output Voltage 1 4.99 to 5.39 V, Output Current 1 0 to 0.962 A, Output Power 5 W, Power Consumption 1.5 to 2.2 W (Dissipation). Tags: Surface Mount. More details for SMSA285R2S can be seen below.

Product Specifications

Product Details

  • Part Number
    SMSA285R2S
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    Single Output DC to DC Converter from 4.99 to 5.39 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Single
  • Input Voltage
    16 to 40 V
  • Output Voltage 1
    4.99 to 5.39 V
  • Output Current 1
    0 to 0.962 A
  • Output Power
    5 W
  • Power Consumption
    1.5 to 2.2 W (Dissipation)
  • Efficiency
    62 to 74%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    300 uF
  • Frequency
    400 to 600 kHz
  • Number of Outputs
    Single
  • Regulation
    Line : 10 to 50 mV, Load : 10 to 50 mV
  • Ripple Voltage
    150 to 675 mVpp
  • Transient Response
    Step Load : ±200 to 1500 mV pk, Step Line : ±200 to 500 mV pk
  • Weight
    15 g
  • Storage Temperature
    -65 to 150 Degree C

Technical Documents
