DC to DC Converter from 4.82 to 5.18 V

SKU: SMTR2805D

Download Datasheet Request Information

Note : Your request will be directed to Crane Aerospace & Electronics.

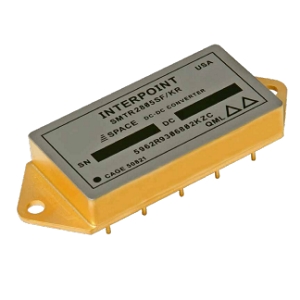

SMTR2805D Image

The SMTR2805D from Crane Aerospace & Electronics is a DC to DC Converter with Input Voltage 16 to 40 V, Output Voltage 1 4.82 to 5.18 V, Output Current 1 0 to 5 A, Output Power 0 to 25 W, Power Consumption 8 to 12 W (Dissipation). Tags: Surface Mount. More details for SMTR2805D can be seen below.

Product Specifications

Product Details

  • Part Number
    SMTR2805D
  • Manufacturer
    Crane Aerospace & Electronics
  • Description
    DC to DC Converter from 4.82 to 5.18 V

General Parameters

  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    16 to 40 V
  • Output Voltage 1
    4.82 to 5.18 V
  • Output Current 1
    0 to 5 A
  • Output Power
    0 to 25 W
  • Power Consumption
    8 to 12 W (Dissipation)
  • Efficiency
    72 to 76%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Application
    Space
  • Capacitance
    1500 uF
  • Frequency
    550 to 650 kHz
  • Number of Outputs
    Dual
  • Regulation
    Line : 0 to 100 mV, Load : 5 to 100 mV
  • Ripple Voltage
    20 to 90 mVpp
  • Transient Response
    Step Load : ±150 to 300 mV pk, Step Line : ±400 mV pk
  • Weight
    50 g
  • Storage Temperature
    -65 to 150 Degree C
