2.5V Single Stage Isolated DC-DC Converter

SKU: 51028250-S

DC to DC Converter by Frontgrade Technologies
10 more products
Download Datasheet Request Information

Note : Your request will be directed to Frontgrade Technologies.

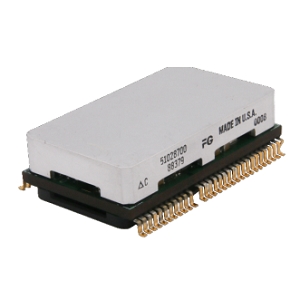

51028250-S Image

The 51028250-S from Frontgrade Technologies is a DC to DC Converter with Input Voltage 21 to 38 V, Output Voltage 1 2.5 V, Output Current 1 0 to 20000 mA, Output Power 0 to 50000 mW, Operating Temperature -55 to 125 Degree C. Tags: Surface Mount. More details for 51028250-S can be seen below.

Product Specifications

Product Details

  • Part Number
    51028250-S
  • Manufacturer
    Frontgrade Technologies
  • Description
    2.5V Single Stage Isolated DC-DC Converter

General Parameters

  • Segment
    Satellite
  • Configuration
    Isolated
  • Input Voltage
    21 to 38 V
  • Output Voltage 1
    2.5 V
  • Output Current 1
    0 to 20000 mA
  • Output Power
    0 to 50000 mW
  • Efficiency
    86 to 91%
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Surface Mount
  • Dimension
    2.51 x 1.51 x 0.67 Inches
  • Capacitance
    1 to 6 mF
  • Frequency
    433 kHz
  • Space Standard
    MIL-PRF-38534, MILSTD-883
  • Standard
    MIL-PRF-38534 Class L
  • Ripple Voltage
    25 mVpp
  • Transient Response
    ±2.5%
  • Weight
    70 g
  • Storage Temperature
    -55 to 125 Degree C
