Space Qualified Hybrid DC-DC Converters from 14.4 to 15.6 V

SKU: SVHF2815D

DC to DC Converter by VPT
196 more products
Download Datasheet Request Information

Note : Your request will be directed to VPT.

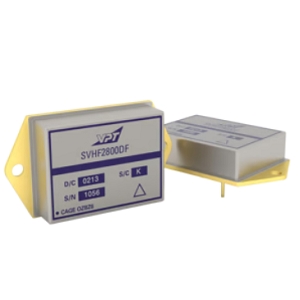

SVHF2815D Image

The SVHF2815D from VPT is a DC to DC Converter with Input Voltage 15 to 50 V, Output Voltage 1 14.4 to 15.6 V, Output Power 0 to 20 W, Output Current 2 0 to 0.93 A, Power Consumption 8 W(Dissipation). Tags: Surface Mount, Flyback Converter. More details for SVHF2815D can be seen below.

Product Specifications

Product Details

  • Part Number
    SVHF2815D
  • Manufacturer
    VPT
  • Description
    Space Qualified Hybrid DC-DC Converters from 14.4 to 15.6 V

General Parameters

  • Type
    Flyback Converter
  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    15 to 50 V
  • Output Voltage 1
    14.4 to 15.6 V
  • Output Power
    0 to 20 W
  • Output Current 2
    0 to 0.93 A
  • Power Consumption
    8 W(Dissipation)
  • Efficiency
    79 to 85 %
  • Operating Temperature
    -55 to 125 Degree C
  • Industry
    Space
  • Package Type
    Surface Mount
  • Application
    Space
  • Dimension
    2 x 1.13 x 0.355 Inches
  • Capacitance
    500 uF
  • Frequency
    350 to 500 kHz
  • Number of Outputs
    Dual
  • Regulation
    Line : 2 to 200 mV, Load : 5 to 200 mV
  • Space Standard
    MIL-STD-461, MIL-STD-883, MIL-HDBK-217F
  • Standard
    MIL-STD-461 C-G
  • Ripple Voltage
    30 to 60 mVpp
  • Weight
    24 g, 28 g
  • Storage Temperature
    -65 to 150 Degree C
  • Note
    Single Event Effects : 44 MeV/mg/cm², Total Dose (TID) : 60 krad(Si)
