Optical Communication Terminal for LEO Constellation

SKU: SCOT80

Satellite Laser Communication Terminal by Tesat-Spacecom GmbH & Co. KG (4 more products)

Note : Your request will be directed to Tesat-Spacecom GmbH & Co. KG.

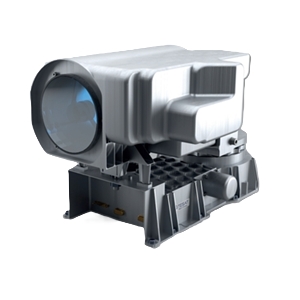

SCOT80 Image

The SCOT80 from Tesat-Spacecom GmbH & Co. KG is a Satellite Laser Communication Terminal with a range of up to 8,000 Km. It has a bidirectional channel data rate of 2.5 Gbps/10 Gbps and a power consumption of 60-80 W. This communication terminal supports Ethernet interface for data and TM/TC and requires a supply voltage of 28 V. It has a mass of 11.9 kg per optical channel and measures 260 x 190 x 240 mm. The terminal features reliable pointing, acquisition, tracking, and communication with over 75,000 links performed. It is compliant with SDA OCT standards and is ideal for low-earth orbit broadband constellations.

Product Specifications

Product Details

  • Part Number
    SCOT80
  • Manufacturer
    Tesat-Spacecom GmbH & Co. KG
  • Description
    Optical Communication Terminal for LEO Constellation

General Parameters

  • Orbit
    LEO
  • Range
    8000 km
  • Mass
    11.9 Kg
  • Data Rate
    2.5 to 10 Gbps
  • Supply Voltage
    28 V
  • Power Consumption
    60 to 80 W
  • Throughput
    100 Mbps to 100 Gbps
  • Interface
    Ethernet
  • Application
    LEO Broadband Constellation
  • Dimension
    Optical Head : 310 x 290 x 470 mm, LCT Electronics : 260 x 190 x 240 mm

Technical Documents
