0.18 uH Space Level Variable Chip Inductor

SKU: S31012-NT-F-K

Space Qualified Inductor by Vanguard Electronics
1576 more products
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

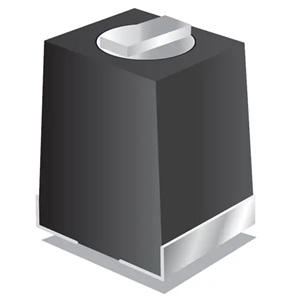

S31012-NT-F-K Image

The S31012-NT-F-K from Vanguard Electronics is a Space Qualified Inductor with Inductance 0.18 uH, Inductance Tolerance ±10%, DCR 90 mOhms, Saturation Current 525 mA, SRF 385 MHz. Tags: Surface Mount. More details for S31012-NT-F-K can be seen below.

Product Specifications

Product Details

  • Part Number
    S31012-NT-F-K
  • Manufacturer
    Vanguard Electronics
  • Description
    0.18 uH Space Level Variable Chip Inductor

General Parameters

  • Section
    RF Inductor
  • Types of Inductor
    Chip Inductor
  • Inductance
    0.18 uH
  • Inductance Tolerance
    ±10%
  • DCR
    90 mOhms
  • Saturation Current
    525 mA
  • SRF
    385 MHz
  • Temperature Operating Range
    -55 to 125 Degree C
  • Space Standard
    MIL-STD-981, MIL-PRF-83446
  • Dimension
    0.13 x 0.165 x 0.225 Inches
  • Package Type
    Surface Mount
  • Package
    SMD
