0.82 uH Space Level Variable Chip Inductor

SKU: S31020-NT-G-J

Space Qualified Inductor by Vanguard Electronics
1576 more products
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

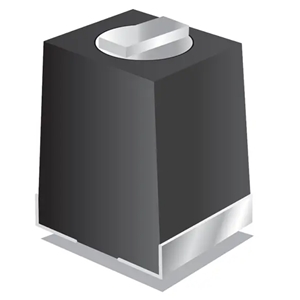

S31020-NT-G-J Image

The S31020-NT-G-J from Vanguard Electronics is a Space Qualified Inductor with Inductance 0.82 uH, Inductance Tolerance ±5%, DCR 700 mOhms, Saturation Current 180 mA, SRF 155 MHz. Tags: Surface Mount. More details for S31020-NT-G-J can be seen below.

Product Specifications

Product Details

  • Part Number
    S31020-NT-G-J
  • Manufacturer
    Vanguard Electronics
  • Description
    0.82 uH Space Level Variable Chip Inductor

General Parameters

  • Section
    RF Inductor
  • Types of Inductor
    Chip Inductor
  • Inductance
    0.82 uH
  • Inductance Tolerance
    ±5%
  • DCR
    700 mOhms
  • Saturation Current
    180 mA
  • SRF
    155 MHz
  • Temperature Operating Range
    -55 to 125 Degree C
  • Space Standard
    MIL-STD-981, MIL-PRF-83446
  • Dimension
    0.13 x 0.165 x 0.225 Inches
  • Package Type
    Surface Mount
  • Package
    SMD
