500 uH Space Grade Common Mode Inductor

SKU: SCM205TH

Space Qualified Inductor by Vanguard Electronics
1576 more products
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

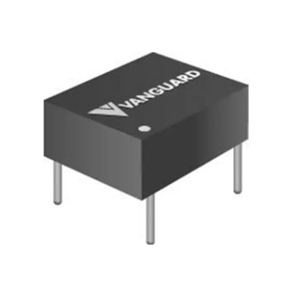

SCM205TH Image

The SCM205TH from Vanguard Electronics is a Space Qualified Inductor with Inductance 500 uH, Inductance Tolerance ±30%, DCR 130 mOhms, Saturation Current 1400 mA, Temperature Operating Range -55 to 125 Degree C. Tags: Surface Mount, Through Hole. More details for SCM205TH can be seen below.

Product Specifications

Product Details

  • Part Number
    SCM205TH
  • Manufacturer
    Vanguard Electronics
  • Description
    500 uH Space Grade Common Mode Inductor

General Parameters

  • Section
    Power Inductor
  • Types of Inductor
    Toroidal Inductor
  • Inductance
    500 uH
  • Inductance Tolerance
    ±30%
  • DCR
    130 mOhms
  • Saturation Current
    1400 mA
  • Temperature Operating Range
    -55 to 125 Degree C
  • Space Standard
    MIL-STD-981
  • Dimension
    0.41 x 0.41 x 0.24 Inches
  • Applications
    GPS
  • Standard
    MIL-STD-981 Class S, MIL-STD-981 Class B
  • Package Type
    Surface Mount, Through Hole
  • Package
    THT
