5000 uH Space Grade Common Mode Inductor

SKU: SCM310TH

Space Qualified Inductor by Vanguard Electronics (1576 more products)
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

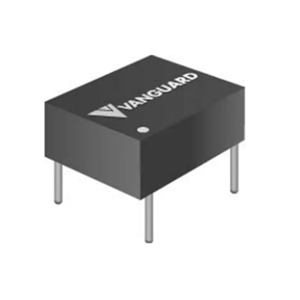

SCM310TH Image

The SCM310TH from Vanguard Electronics is a Space Qualified Inductor with Inductance 5000 uH, Inductance Tolerance ±30%, DCR 650 mOhms, Saturation Current 700 mA, Temperature Operating Range -55 to 125 Degree C. Tags: Surface Mount, Through Hole. More details for SCM310TH can be seen below.

Product Specifications

Product Details

  • Part Number
    SCM310TH
  • Manufacturer
    Vanguard Electronics
  • Description
    5000 uH Space Grade Common Mode Inductor

General Parameters

  • Section
    Power Inductor
  • Types of Inductor
    Toroidal Inductor
  • Inductance
    5000 uH
  • Inductance Tolerance
    ±30%
  • DCR
    650 mOhms
  • Saturation Current
    700 mA
  • Temperature Operating Range
    -55 to 125 Degree C
  • Space Standard
    MIL-STD-981
  • Dimension
    0.41 x 0.41 x 0.31 Inches
  • Applications
    GPS
  • Standard
    MIL-STD-981 Class S, MIL-STD-981 Class B
  • Package Type
    Surface Mount, Through Hole
  • Package
    THT
