541 uH, 750 uH Space Grade High Current Power Inductor

SKU: SHCL1-751KS

Space Qualified Inductor by Vanguard Electronics (1576 more products)
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

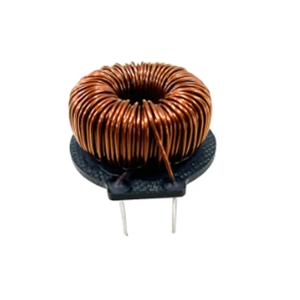

SHCL1-751KS Image

The SHCL1-751KS from Vanguard Electronics is a Space Qualified Inductor with Inductance 541 uH, 750 uH, Inductance Tolerance ±10%, DCR 1280 mOhms, Saturation Current 3700 mA, Temperature Operating Range -55 to 180 Degree C. Tags: Through Hole. More details for SHCL1-751KS can be seen below.

Product Specifications

Product Details

  • Part Number
    SHCL1-751KS
  • Manufacturer
    Vanguard Electronics
  • Description
    541 uH, 750 uH Space Grade High Current Power Inductor

General Parameters

  • Section
    Power Inductor
  • Types of Inductor
    Current Inductor
  • Inductance
    541 uH, 750 uH
  • Inductance Tolerance
    ±10%
  • DCR
    1280 mOhms
  • Saturation Current
    3700 mA
  • Temperature Operating Range
    -55 to 180 Degree C
  • Space Standard
    MIL-STD-981
  • Dimension
    0.94 x 0.94 x 0.45 Inches
  • Applications
    GPS
  • Standard
    MIL-STD-981 Class S, MIL-STD-981 Class B
  • Package Type
    Through Hole
  • Package
    THT
