670 uH, 1000 uH Space Grade High Current Power Inductor

SKU: SHCL3-102KR

Space Qualified Inductor by Vanguard Electronics
1576 more products
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

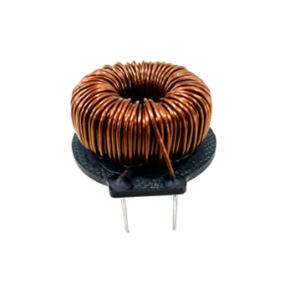

SHCL3-102KR Image

The SHCL3-102KR from Vanguard Electronics is a Space Qualified Inductor with Inductance 670 uH, 1000 uH, Inductance Tolerance ±10%, DCR 180 mOhms, Saturation Current 4000 to 7100 mA, Temperature Operating Range -55 to 180 Degree C. Tags: Through Hole. More details for SHCL3-102KR can be seen below.

Product Specifications

Product Details

  • Part Number
    SHCL3-102KR
  • Manufacturer
    Vanguard Electronics
  • Description
    670 uH, 1000 uH Space Grade High Current Power Inductor

General Parameters

  • Section
    Power Inductor
  • Types of Inductor
    Current Inductor
  • Inductance
    670 uH, 1000 uH
  • Inductance Tolerance
    ±10%
  • DCR
    180 mOhms
  • Saturation Current
    4000 to 7100 mA
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -55 to 180 Degree C
  • Space Standard
    MIL-STD-981
  • Dimension
    1.35 x 1.35 x 0.81 Inches
  • Applications
    GPS
  • Standard
    MIL-STD-981 Class S, MIL-STD-981 Class B
  • Package Type
    Through Hole
  • Package
    THT
