33 uH, 68 uH Space Grade High Current Power Inductor

SKU: SHCL3-680KS

Space Qualified Inductor by Vanguard Electronics (1576 more products)
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

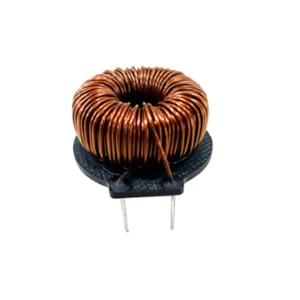

SHCL3-680KS Image

The SHCL3-680KS from Vanguard Electronics is a Space Qualified Inductor with Inductance 33 uH, 68 uH, Inductance Tolerance ±10%, DCR 15 mOhms, Saturation Current 14000 to 35000 mA, Temperature Operating Range -55 to 180 Degree C. Tags: Through Hole. More details for SHCL3-680KS can be seen below.

Product Specifications

Product Details

  • Part Number
    SHCL3-680KS
  • Manufacturer
    Vanguard Electronics
  • Description
    33 uH, 68 uH Space Grade High Current Power Inductor

General Parameters

  • Section
    Power Inductor
  • Types of Inductor
    Current Inductor
  • Inductance
    33 uH, 68 uH
  • Inductance Tolerance
    ±10%
  • DCR
    15 mOhms
  • Saturation Current
    14000 to 35000 mA
  • Temperature Operating Range
    -55 to 180 Degree C
  • Space Standard
    MIL-STD-981
  • Dimension
    1.35 x 1.35 x 0.81 Inches
  • Applications
    GPS
  • Standard
    MIL-STD-981 Class S, MIL-STD-981 Class B
  • Package Type
    Through Hole
  • Package
    THT
