15 uH Space Grade High Current Low Profile Planar Inductor

SKU: SHILO1209B-R15S

Space Qualified Inductor by Vanguard Electronics
1576 more products
Download Datasheet Request Information

Note : Your request will be directed to Vanguard Electronics.

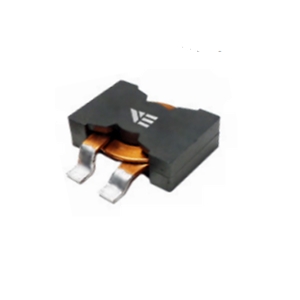

SHILO1209B-R15S Image

The SHILO1209B-R15S from Vanguard Electronics is a Space Qualified Inductor with Inductance 15 uH, Inductance Tolerance ±30%, DCR 9.5 mOhms, Saturation Current 5000 mA, Temperature Operating Range -55 to 130 Degree C. Tags: Surface Mount. More details for SHILO1209B-R15S can be seen below.

Product Specifications

Product Details

  • Part Number
    SHILO1209B-R15S
  • Manufacturer
    Vanguard Electronics
  • Description
    15 uH Space Grade High Current Low Profile Planar Inductor

General Parameters

  • Section
    Power Inductor
  • Types of Inductor
    Current Inductor, Planar Inductor
  • Inductance
    15 uH
  • Inductance Tolerance
    ±30%
  • DCR
    9.5 mOhms
  • Saturation Current
    5000 mA
  • Temperature Operating Range
    -55 to 130 Degree C
  • Space Standard
    MIL-STD-981
  • Dimension
    0.49 x 0.5 x 0.22 Inches
  • Applications
    GPS
  • Standard
    MIL-STD-981 Class S, MIL-STD-981 Class B
  • Package Type
    Surface Mount
  • Package
    SMD
